SELECTED FILTERS

Manually Selected clear all

	Department: Parker Divisions
	Division Name: Pneumatic
	Product: P33 Standard Global Modular Filter/Regulator

Automatically Selected

»	Air Preparation Series: Global Modular
»	Air Preparation Product Type: Filter/Regulator
»	Series: P33 Standard
»	Port Inch/BSP: NPT
»	Element Rating: 5 micron
»	Secondary Pressure Range: 2 to 125 PSIG (0 to 8.6 bar)
»	Gauge Type: None
»	Parker Division: Pneumatic
»	Relieving/Non-relieving: Relieving

AVAILABLE FILTERS

Port

Flow Range

Supply Pressure Range

Bowl Type

Filter Drain Type

Operating Temperature

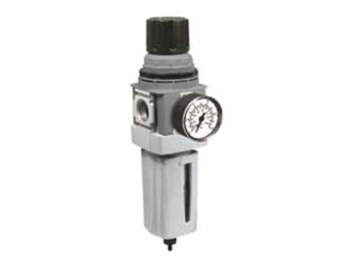

P33 Standard Global Modular Filter/Regulator

Click Image to Zoom

P33 Standard Global Modular Filter/Regulator

P33 Standard Airline Filter/Regulator

Email this page to a friend

Showing 1 - 8 of 8

	Part #	Availability	Price
	P33EA94EGABNGP	2	$187.69
	P33EA94EGMBNGP	44	$148.56
	P33EA94ESABNGP	2	$190.96
	P33EA94ESMBNGP	Backorder	$151.84
	P33EA96EGABNGP	2	$187.69
	P33EA96EGMBNGP	Backorder	$148.56
	P33EA96ESABNGP	Backorder	$190.96
	P33EA96ESMBNGP	Backorder	$151.84

UOM	Port	Bowl Type	Filter Drain Type	Element Rating	Supply Pressure Range	Secondary Pressure Range	Gauge Type	Relieving/Non-relieving	Maximum Flow	Operating Temperature
EACH	1/2 NPT	Poly with bowl guard	Auto Float	5 micron	15 to 150 PSIG (1 to 10.3 bar)	2 to 125 PSIG (0 to 8.6 bar)	None	Relieving	191 SCFM (90 dm3/s)	-25°C to 52°C (-13°F to 25°F)
EACH	1/2 NPT	Poly with bowl guard	Manual	5 micron	0 to 150 PSIG (0 to 10.3 bar)	2 to 125 PSIG (0 to 8.6 bar)	None	Relieving	191 SCFM (90 dm3/s)	-25°C to 52°C (-13°F to 25°F)
EACH	1/2 NPT	Metal with sight gauge	Auto Float	5 micron	15 to 250 PSIG (1.0 to 17.2 bar)	2 to 125 PSIG (0 to 8.6 bar)	None	Relieving	191 SCFM (90 dm3/s)	-25°C to 65.5°C (-13°F to 150°F)
EACH	1/2 NPT	Metal with sight gauge	Manual	5 micron	0 to 250 PSIG (0 to 17.2 bar)	2 to 125 PSIG (0 to 8.6 bar)	None	Relieving	191 SCFM (90 dm3/s)	-25°C to 65.5°C (-13°F to 150°F)
EACH	3/4 NPT	Poly with bowl guard	Auto Float	5 micron	15 to 150 PSIG (1 to 10.3 bar)	2 to 125 PSIG (0 to 8.6 bar)	None	Relieving	208 SCFM (98 dm3/s)	-25°C to 52°C (-13°F to 25°F)
EACH	3/4 NPT	Poly with bowl guard	Manual	5 micron	0 to 150 PSIG (0 to 10.3 bar)	2 to 125 PSIG (0 to 8.6 bar)	None	Relieving	208 SCFM (98 dm3/s)	-25°C to 52°C (-13°F to 25°F)
EACH	3/4 NPT	Metal with sight gauge	Auto Float	5 micron	15 to 250 PSIG (1.0 to 17.2 bar)	2 to 125 PSIG (0 to 8.6 bar)	None	Relieving	208 SCFM (98 dm3/s)	-25°C to 65.5°C (-13°F to 150°F)
EACH	3/4 NPT	Metal with sight gauge	Manual	5 micron	0 to 250 PSIG (0 to 17.2 bar)	2 to 125 PSIG (0 to 8.6 bar)	None	Relieving	208 SCFM (98 dm3/s)	-25°C to 65.5°C (-13°F to 150°F)

Showing 1 - 8 of 8

P33 Standard Global Modular Filter/Regulator

Global Modular Air Preperation
