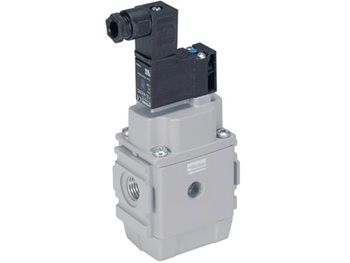

Global Modular Combined Soft Start/Dump Valve
Combined Soft Start/Dump Valve
Email this page to a friend
Showing 1 - 5 of 5
| Part # | Availability | Price | |
|---|---|---|---|
| P31TA92PPN | Backorder | Call To Place Order | |
| P31TA92SGNC1FN | Backorder | $240.85 | |
| P31TA92SGNC2CN | Backorder | $240.85 | |
| P32TA94PPN | Backorder | $337.30 | |
| P32TA94SCNA3GN | Backorder | $383.20 |
| UOM | Port | Supply Pressure Range | Maximum Flow | Operator | Operating Temperature |
|---|---|---|---|---|---|
| EACH | 1/4 NPT | 44 to 250 PSIG (3 to 17.2 bar) | 36 SCFM (17 dm3/s) | External air pilot | 80°C (176°F) |
| EACH | 1/4 NPT | 44 to 150 PSIG (3 to 10.3 bar) | 36 SCFM (17 dm3/s) | 120VAC Solenoid & cable plug | 50°C (122°F) |
| EACH | 1/4 NPT | 44 to 150 PSIG (3 to 10.3 bar) | 36 SCFM (17 dm3/s) | 24VDC Solenoid & cable plug | 50°C (122°F) |
| EACH | 1/2 NPT | 44 to 250 PSIG (3 to 17.2 bar) | 97 SCFM (46 dm3/s) | External air pilot | 80°C (176°F) |
| EACH | 1/2 NPT | 44 to 150 PSIG (3 to 10.3 bar) | 97 SCFM (46 dm3/s) | 120VAC 30mm coil & cable plug | 50°C (122°F) |
Showing 1 - 5 of 5
Global Modular Combined Soft Start/Dump Valve
