Showing 1 - 7 of 7
| UOM | Port | Supply Pressure Range | Maximum Flow | Operator | Operating Temperature |
|---|---|---|---|---|---|
| EACH | 1/4 NPT | 44 to 250 PSIG (3 to 17.2 bar) | 36 SCFM (17 dm3/s) | External air pilot | 80°C (176°F) |
| EACH | 1/4 NPT | 44 to 150 PSIG (3 to 10.3 bar) | 36 SCFM (17 dm3/s) | 120VAC Solenoid & cable plug | 50°C (122°F) |
| EACH | 1/4 NPT | 44 to 150 PSIG (3 to 10.3 bar) | 36 SCFM (17 dm3/s) | 24VDC Solenoid & cable plug | 50°C (122°F) |
| EACH | 1/2 NPT | 44 to 250 PSIG (3 to 17.2 bar) | 97 SCFM (46 dm3/s) | Internal air pilot | 80°C (176°F) |
| EACH | 1/2 NPT | 44 to 250 PSIG (3 to 17.2 bar) | 97 SCFM (46 dm3/s) | External air pilot | 80°C (176°F) |
| EACH | 1/2 NPT | 44 to 150 PSIG (3 to 10.3 bar) | 97 SCFM (46 dm3/s) | 24VDC 30mm coil & cable plug | 50°C (122°F) |
| EACH | 1/2 NPT | 44 to 150 PSIG (3 to 10.3 bar) | 97 SCFM (46 dm3/s) | 120VAC 30mm coil & cable plug | 50°C (122°F) |
Showing 1 - 7 of 7

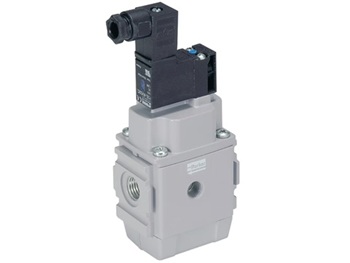

Global Modular Soft Start Valve
