SELECTED FILTERS

Manually Selected clear all

	Department: Parker Divisions
	Division Name: Pneumatic
	Product: 07R Standard General Industrial Regulator

Automatically Selected

»	Air Preparation Series: General Industrial
»	Air Preparation Product Type: Regulator
»	Trade Name: Prep-Air II
»	Series: 07R Standard
»	Operating Temperature: 0°C to 80°C (32°F to 175°F)
»	Port Inch/BSP: NPT
»	Flow Range: 75-99 SCFM
»	Secondary Pressure Range: 2 to 125 PSIG (0 to 8.6 bar)
»	Supply Pressure Range: 0 to 250 PSIG (0 to 17.2 bar)
»	Gauge Type: None
»	Parker Division: Pneumatic
»	Relieving/Non-relieving: Relieving

AVAILABLE FILTERS

Port

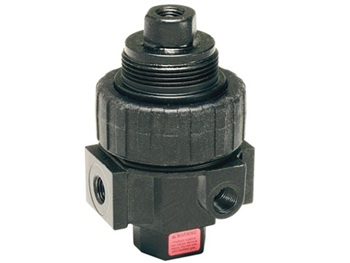

07R Standard General Industrial Regulator

Click Image to Zoom

07R Standard General Industrial Regulator

07R Standard Prep-Air II Regulator

Email this page to a friend

Showing 1 - 2 of 2

	Part #	Availability	Price
	07R313AC	147	$149.25
	07R413AC	67	$149.25

UOM	Operating Temperature	Port	Supply Pressure Range	Secondary Pressure Range	Gauge Type	Relieving/Non-relieving	Maximum Flow
EACH	0°C to 80°C (32°F to 175°F)	1/2 NPT	0 to 250 PSIG (0 to 17.2 bar)	2 to 125 PSIG (0 to 8.6 bar)	None	Relieving	90 SCFM (42 dm3/s)
EACH	0°C to 80°C (32°F to 175°F)	3/4 NPT	0 to 250 PSIG (0 to 17.2 bar)	2 to 125 PSIG (0 to 8.6 bar)	None	Relieving	90 SCFM (42 dm3/s)

Showing 1 - 2 of 2

07R Standard General Industrial Regulator

General Industrial Air Preperation
