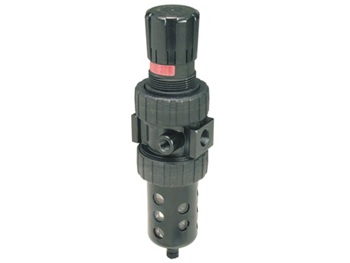

06E Compact General Industrial Filter/Regulator
06E Compact Prep-Air II Filter/Regulator
Email this page to a friend
Showing 1 - 8 of 8
| Port | Bowl Type | Element Rating | Supply Pressure Range | Secondary Pressure Range | Relieving/Non-relieving | Operating Temperature | UOM | Filter Drain Type | Gauge Type | Maximum Flow |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/4 NPT | Poly with bowl guard | 5 micron | 0 to 150 PSIG (0 to 10.3 bar) | 2 to 125 PSIG (0 to 8.6 bar) | Relieving | 0°C to 52°C (32°F to 125°F) | EACH | N/A | N/A | N/A |
| 1/4 NPT | Poly with bowl guard | 5 micron | 0 to 150 PSIG (0 to 10.3 bar) | 2 to 125 PSIG (0 to 8.6 bar) | Relieving | 0°C to 52°C (32°F to 125°F) | EACH | N/A | N/A | N/A |
| 3/8 NPT | Poly with bowl guard | 5 micron | 0 to 150 PSIG (0 to 10.3 bar) | 2 to 125 PSIG (0 to 8.6 bar) | Relieving | 0°C to 52°C (32°F to 125°F) | EACH | N/A | N/A | N/A |
| 3/8 NPT | Poly with bowl guard | 5 micron | 0 to 150 PSIG (0 to 10.3 bar) | 2 to 125 PSIG (0 to 8.6 bar) | Relieving | 0°C to 52°C (32°F to 125°F) | EACH | N/A | N/A | N/A |
| 1/2 NPT | Poly with bowl guard | 5 micron | 0 to 150 PSIG (0 to 10.3 bar) | 2 to 125 PSIG (0 to 8.6 bar) | Relieving | 0°C to 52°C (32°F to 125°F) | EACH | N/A | N/A | N/A |
| 1/2 NPT | Poly with bowl guard | 5 micron | 0 to 150 PSIG (0 to 10.3 bar) | 2 to 125 PSIG (0 to 8.6 bar) | Relieving | 0°C to 52°C (32°F to 125°F) | EACH | N/A | N/A | N/A |
| 3/8 NPT | Poly with bowl guard | 5 micron | 0 to 150 PSIG (0 to 10.3 bar) | 2 to 125 PSIG (0 to 8.6 bar) | Relieving | 0°C to 52°C (32°F to 125°F) | N/A | Auto Float | None | 55 SCFM (26 dm3/s) |
| 1/2 NPT | Poly with bowl guard | 5 micron | 0 to 150 PSIG (0 to 10.3 bar) | 2 to 125 PSIG (0 to 8.6 bar) | Relieving | 0°C to 52°C (32°F to 125°F) | N/A | Auto Float | None | 61 SCFM (29 dm3/s) |
Showing 1 - 8 of 8
06E Compact General Industrial Filter/Regulator
