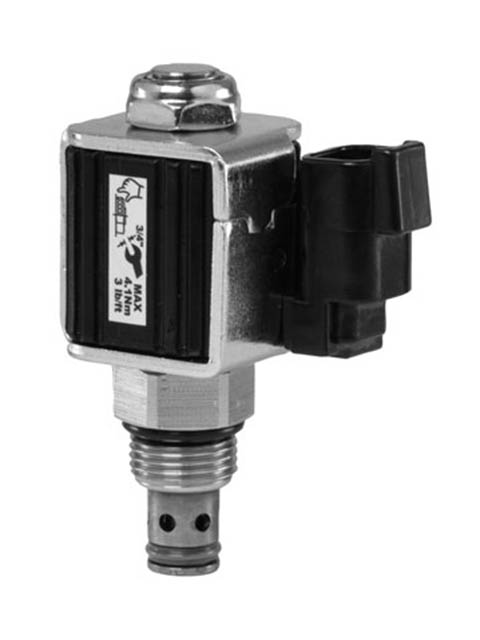

DSL082 Solenoid Valve
Spool Type - 2-Way Solenoid Valve for Size 08, 2-way Cavity
Spool Type - 2-Way Solenoid Valve for Size 08, 2-way Cavity
Showing 1 - 12 of 12
| Rated Flow | Leakage | Max Pressure | Seals | Screen | Operating Temperature | Override Type | Common Cavity | Valve Body | UOM |
|---|---|---|---|---|---|---|---|---|---|
| 15 LPM (4 GPM) | 120 cc/min. (7.5 in3/min.) 150 SSU (32cSt) at 250 Bar (3600 PSI) | 250 Bar (3600 PSI) | “D”-Ring | None | -45C to +93.3C (-50F to +200F) | None | Size 08, 2-way | B08-2 | EACH |
| 15 LPM (4 GPM) | 120 cc/min. (7.5 in3/min.) 150 SSU (32cSt) at 250 Bar (3600 PSI) | 250 Bar (3600 PSI) | “D”-Ring | None | -45C to +93.3C (-50F to +200F) | Pull & Release (N.C. Only) | Size 08, 2-way | B08-2 | EACH |
| 15 LPM (4 GPM) | 120 cc/min. (7.5 in3/min.) 150 SSU (32cSt) at 250 Bar (3600 PSI) | 250 Bar (3600 PSI) | “D”-Ring | None | -45C to +93.3C (-50F to +200F) | Push & Twist (N.C. & N.O.) | Size 08, 2-way | B08-2 | EACH |
| 15 LPM (4 GPM) | 120 cc/min. (7.5 in3/min.) 150 SSU (32cSt) at 250 Bar (3600 PSI) | 250 Bar (3600 PSI) | “D”-Ring | None | -45C to +93.3C (-50F to +200F) | None | Size 08, 2-way | B08-2 | EACH |
| 15 LPM (4 GPM) | 120 cc/min. (7.5 in3/min.) 150 SSU (32cSt) at 250 Bar (3600 PSI) | 250 Bar (3600 PSI) | “D”-Ring | None | -45C to +93.3C (-50F to +200F) | Pull & Release (N.C. Only) | Size 08, 2-way | B08-2 | EACH |
| 15 LPM (4 GPM) | 120 cc/min. (7.5 in3/min.) 150 SSU (32cSt) at 250 Bar (3600 PSI) | 250 Bar (3600 PSI) | “D”-Ring | None | -45C to +93.3C (-50F to +200F) | Push & Twist (N.C. & N.O.) | Size 08, 2-way | B08-2 | EACH |
| 15 LPM (4 GPM) | 120 cc/min. (7.5 in3/min.) 150 SSU (32cSt) at 250 Bar (3600 PSI) | 250 Bar (3600 PSI) | “D”-Ring | Screen | -45C to +93.3C (-50F to +200F) | Push & Twist (N.C. & N.O.) | Size 08, 2-way | B08-2 | EACH |
| 15 LPM (4 GPM) | 120 cc/min. (7.5 in3/min.) 150 SSU (32cSt) at 250 Bar (3600 PSI) | 250 Bar (3600 PSI) | Fluorocarbon | None | -31.7C to +121.1C (-25F to +250F) | Push & Twist (N.C. & N.O.) | Size 08, 2-way | B08-2 | EACH |
| 15 LPM (4 GPM) | 120 cc/min. (7.5 in3/min.) 150 SSU (32cSt) at 250 Bar (3600 PSI) | 250 Bar (3600 PSI) | Fluorocarbon | None | -31.7C to +121.1C (-25F to +250F) | None | Size 08, 2-way | B08-2 | EACH |
| 15 LPM (4 GPM) | 120 cc/min. (7.5 in3/min.) 150 SSU (32cSt) at 250 Bar (3600 PSI) | 250 Bar (3600 PSI) | Fluorocarbon | None | -31.7C to +121.1C (-25F to +250F) | Pull & Release (N.C. Only) | Size 08, 2-way | B08-2 | EACH |
| 15 LPM (4 GPM) | 120 cc/min. (7.5 in3/min.) 150 SSU (32cSt) at 250 Bar (3600 PSI) | 250 Bar (3600 PSI) | Fluorocarbon | None | -31.7C to +121.1C (-25F to +250F) | Push & Twist (N.C. & N.O.) | Size 08, 2-way | B08-2 | EACH |
| 15 LPM (4 GPM) | 120 cc/min. (7.5 in3/min.) 150 SSU (32cSt) at 250 Bar (3600 PSI) | 250 Bar (3600 PSI) | Fluorocarbon | None | -31.7C to +121.1C (-25F to +250F) | None | Size 08, 2-way | B08-2 | EACH |
DSL082 Series Solenoid Valve - Spool Type - 2-Way
