DSH082 Solenoid Valve

Click Image to Zoom

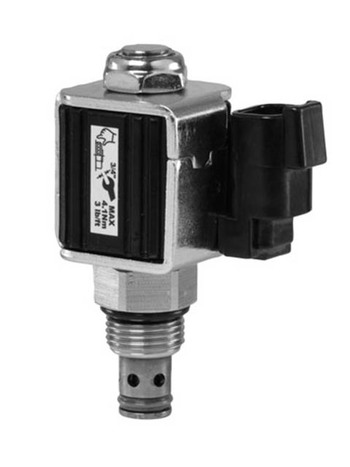

DSH082 Solenoid Valve

Spool Type - 2-Way Solenoid Valve for Size 08, 2-way Cavity (Coil Not Included)

Email this page to a friend

Showing 1 - 9 of 9

	Part #	Availability	Price
	DSH082C	Backorder	$77.96
	DSH082CT	Backorder	$118.80
	DSH082N	In Stock	$103.31
	DSH082NT	Backorder	$118.80
	DSH082CTV	Backorder	$123.50
	DSH082CV	Backorder	$82.42
	DSH082NTV	Backorder	$123.50
	DSH082NV	Backorder	$82.42
	DSH082CTVS	Backorder	$129.94

Rated Flow	Leakage	Max Pressure	Seals	Screen	Operating Temperature	Override Type	Common Cavity	Valve Body	UOM
15 LPM (4 GPM)	160 cc/min. (10 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	None	Size 08, 2-way	B08-2	EACH
15 LPM (4 GPM)	160 cc/min. (10 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	Push & Twist (N.C. & N.O.)	Size 08, 2-way	B08-2	EACH
15 LPM (4 GPM)	160 cc/min. (10 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	None	Size 08, 2-way	B08-2	EACH
15 LPM (4 GPM)	160 cc/min. (10 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	Push & Twist (N.C. & N.O.)	Size 08, 2-way	B08-2	EACH
15 LPM (4 GPM)	160 cc/min. (10 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	Fluorocarbon	None	-31.7C to +121.1C (-25F to +250F)	Push & Twist (N.C. & N.O.)	Size 08, 2-way	B08-2	EACH
15 LPM (4 GPM)	160 cc/min. (10 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	Fluorocarbon	None	-31.7C to +121.1C (-25F to +250F)	None	Size 08, 2-way	B08-2	EACH
15 LPM (4 GPM)	160 cc/min. (10 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	Fluorocarbon	None	-31.7C to +121.1C (-25F to +250F)	Push & Twist (N.C. & N.O.)	Size 08, 2-way	B08-2	EACH
15 LPM (4 GPM)	160 cc/min. (10 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	Fluorocarbon	None	-31.7C to +121.1C (-25F to +250F)	None	Size 08, 2-way	B08-2	EACH
15 LPM (4 GPM)	160 cc/min. (10 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	Fluorocarbon	Screen	-31.7C to +121.1C (-25F to +250F)	Push & Twist (N.C. & N.O.)	Size 08, 2-way	B08-2	EACH

Showing 1 - 9 of 9

DSH082 Series Solenoid Valve - Spool Type - 2-Way (Coil Not Included)
