SELECTED FILTERS

Manually Selected clear all

	Department: Hydraulic Products
	Product Type: Valves
	Product Sub-Type: Cartridge Valves
	Product: DSL083 Solenoid Valve

Automatically Selected

»	Valve Type: Solenoid Valve
»	Series: DSL083
»	Valve Type Detail: Spool Type - 3-Way
»	Max Pressure: 250 Bar (3600 PSI)
»	Port: None - Cartridge Only
»	Valve Style: 3-way or 4-way spool (see catalog for flow paths)
»	Common Cavity Type: Size 08, 3-way
»	Parker Division: Hydraulic Cartridge Systems
»	Screen: None
»	Valve Body: B08-3

AVAILABLE FILTERS

Override Type

Leakage

Operating Temperature

Rated Flow

Seals

Click Image to Zoom

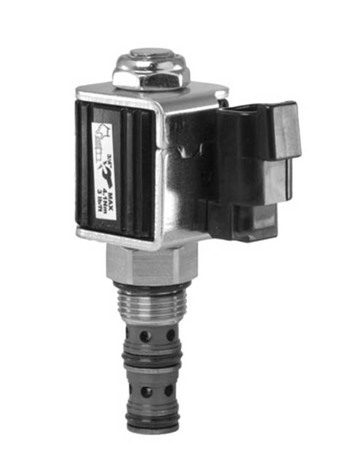

DSL083 Solenoid Valve

Spool Type - 3-Way Solenoid Valve for Size 08, 3-way Cavity (Coil Not Included)

Email this page to a friend

Showing 1 - 20 of 22

Part #	Availability	Price
DSL083A	In Stock	$82.89
DSL083AV	Backorder	$68.06
DSL083AP	Backorder	$103.70
DSL083APV	Backorder	$108.65
DSL083AT	In Stock	$136.98
DSL083ATV	Backorder	$108.65
DSL083B	In Stock	$71.69
DSL083BV	Backorder	$59.15
DSL083BP	In Stock	$125.45
DSL083BPV	Backorder	$100.24
DSL083BT	Backorder	$95.04
DSL083BTV	Backorder	$100.24
DSL083C	Backorder	$67.32
DSL083CV	Backorder	$72.52
DSL083CT	Backorder	$108.16
DSL083CTV	Backorder	$112.86
DSL083N	In Stock	$82.89
DSL083NV	Backorder	$68.06
DSL083NP	Backorder	$103.70
DSL083NPV	Backorder	$108.65

Rated Flow	Leakage	Max Pressure	Seals	Screen	Operating Temperature	Override Type	Common Cavity	Valve Body	UOM
8.4 LPM (2.25 GPM)	120 cc/min. (7.5 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	None	Size 08, 3-way	B08-3	EACH
8.4 LPM (2.25 GPM)	120 cc/min. (7.5 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	Fluorocarbon	None	-31.7C to +121.1C (-25F to +250F)	None	Size 08, 3-way	B08-3	EACH
8.4 LPM (2.25 GPM)	120 cc/min. (7.5 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	Pull & Release (N.C. Only)	Size 08, 3-way	B08-3	EACH
8.4 LPM (2.25 GPM)	120 cc/min. (7.5 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	Fluorocarbon	None	-31.7C to +121.1C (-25F to +250F)	Pull & Release (N.C. Only)	Size 08, 3-way	B08-3	EACH
8.4 LPM (2.25 GPM)	120 cc/min. (7.5 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	Push & Twist (N.C. & N.O.)	Size 08, 3-way	B08-3	EACH
8.4 LPM (2.25 GPM)	120 cc/min. (7.5 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	Fluorocarbon	None	-31.7C to +121.1C (-25F to +250F)	Push & Twist (N.C. & N.O.)	Size 08, 3-way	B08-3	EACH
15.0 LPM (4.0 GPM)	180 cc/min. (11 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	None	Size 08, 3-way	B08-3	EACH
15.0 LPM (4.0 GPM)	180 cc/min. (11 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	Fluorocarbon	None	-31.7C to +121.1C (-25F to +250F)	None	Size 08, 3-way	B08-3	EACH
15.0 LPM (4.0 GPM)	180 cc/min. (11 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	Pull & Release (N.C. Only)	Size 08, 3-way	B08-3	EACH
15.0 LPM (4.0 GPM)	180 cc/min. (11 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	Fluorocarbon	None	-31.7C to +121.1C (-25F to +250F)	Pull & Release (N.C. Only)	Size 08, 3-way	B08-3	EACH
15.0 LPM (4.0 GPM)	180 cc/min. (11 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	Push & Twist (N.C. & N.O.)	Size 08, 3-way	B08-3	EACH
15.0 LPM (4.0 GPM)	180 cc/min. (11 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	Fluorocarbon	None	-31.7C to +121.1C (-25F to +250F)	Push & Twist (N.C. & N.O.)	Size 08, 3-way	B08-3	EACH
15.0 LPM (4.0 GPM)	120 cc/min. (7.5 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	None	Size 08, 3-way	B08-3	EACH
15.0 LPM (4.0 GPM)	120 cc/min. (7.5 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	Fluorocarbon	None	-31.7C to +121.1C (-25F to +250F)	None	Size 08, 3-way	B08-3	EACH
15.0 LPM (4.0 GPM)	120 cc/min. (7.5 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	Push & Twist (N.C. & N.O.)	Size 08, 3-way	B08-3	EACH
15.0 LPM (4.0 GPM)	120 cc/min. (7.5 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	Fluorocarbon	None	-31.7C to +121.1C (-25F to +250F)	Push & Twist (N.C. & N.O.)	Size 08, 3-way	B08-3	EACH
12.3 LPM (3.25 GPM)	180 cc/min. (11 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	None	Size 08, 3-way	B08-3	EACH
12.3 LPM (3.25 GPM)	180 cc/min. (11 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	Fluorocarbon	None	-31.7C to +121.1C (-25F to +250F)	None	Size 08, 3-way	B08-3	EACH
12.3 LPM (3.25 GPM)	180 cc/min. (11 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	Pull & Release (N.C. Only)	Size 08, 3-way	B08-3	EACH
12.3 LPM (3.25 GPM)	180 cc/min. (11 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	Fluorocarbon	None	-31.7C to +121.1C (-25F to +250F)	Pull & Release (N.C. Only)	Size 08, 3-way	B08-3	EACH

Showing 1 - 20 of 22

DSL083 Series Solenoid Valve - Spool Type - 3-Way (Coil Not Included)
