SELECTED FILTERS

Manually Selected clear all

	Department: Hydraulic Products
	Product Type: Valves
	Product Sub-Type: Cartridge Valves
	Product: DSH103 Solenoid Valve

Automatically Selected

»	Valve Type: Solenoid Valve
»	Series: DSH103
»	Valve Type Detail: Spool Type - 3-Way
»	Max Pressure: 350 Bar (5000 PSI)
»	Port: None - Cartridge Only
»	Valve Style: 3-way or 4-way spool (see catalog for flow paths)
»	Common Cavity Type: Size 10, 3-way
»	Parker Division: Hydraulic Cartridge Systems
»	Screen: None
»	Valve Body: B10-3

AVAILABLE FILTERS

Override Type

Leakage

Operating Temperature

Rated Flow

Seals

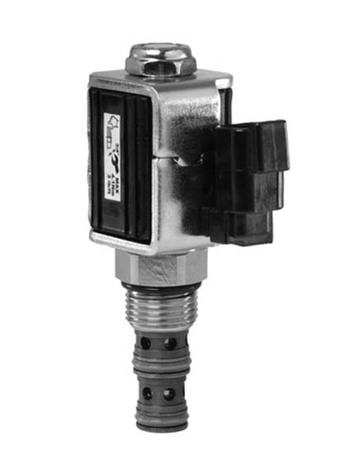

DSH103 Solenoid Valve

Click Image to Zoom

DSH103 Solenoid Valve

Spool Type - 3-Way Solenoid Valve for Size 10, 3-way Cavity (Coil Not Included)

Email this page to a friend

Showing 1 - 13 of 13

	Part #	Availability	Price
	DSH103A	Backorder	$86.13
	DSH103AV	Backorder	$91.82
	DSH103AT	Backorder	$127.71
	DSH103B	In Stock	$83.41
	DSH103BV	Backorder	$89.35
	DSH103BT	In Stock	$124.74
	DSH103BTV	Backorder	$130.68
	DSH103C	Backorder	$86.13
	DSH103CT	Backorder	$127.71
	DSH103N	Backorder	$98.26
	DSH103NV	Backorder	$104.45
	DSH103NT	Backorder	$140.09
	DSH103NTV	Backorder	$146.27

Rated Flow	Leakage	Max Pressure	Seals	Screen	Operating Temperature	Override Type	Common Cavity	Valve Body	UOM
15.0 LPM (4.0 GPM	160 cc/min. (10 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	None	Size 10, 3-way	B10-3	EACH
15.0 LPM (4.0 GPM	160 cc/min. (10 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	Fluorocarbon	None	-31.7C to +121.1C (-25F to +250F)	None	Size 10, 3-way	B10-3	EACH
15.0 LPM (4.0 GPM	160 cc/min. (10 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	Push & Twist (N.C. & N.O.)	Size 10, 3-way	B10-3	EACH
30.0 LPM (8.0 GPM)	250 cc/min. (15 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	None	Size 10, 3-way	B10-3	EACH
30.0 LPM (8.0 GPM)	250 cc/min. (15 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	Fluorocarbon	None	-31.7C to +121.1C (-25F to +250F)	None	Size 10, 3-way	B10-3	EACH
30.0 LPM (8.0 GPM)	250 cc/min. (15 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	Push & Twist (N.C. & N.O.)	Size 10, 3-way	B10-3	EACH
30.0 LPM (8.0 GPM)	250 cc/min. (15 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	Fluorocarbon	None	-31.7C to +121.1C (-25F to +250F)	Push & Twist (N.C. & N.O.)	Size 10, 3-way	B10-3	EACH
30.0 LPM (8.0 GPM)	160 cc/min. (10 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	None	Size 10, 3-way	B10-3	EACH
30.0 LPM (8.0 GPM)	160 cc/min. (10 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	Push & Twist (N.C. & N.O.)	Size 10, 3-way	B10-3	EACH
15.0 LPM (4.0 GPM	250 cc/min. (15 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	None	Size 10, 3-way	B10-3	EACH
15.0 LPM (4.0 GPM	250 cc/min. (15 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	Fluorocarbon	None	-31.7C to +121.1C (-25F to +250F)	None	Size 10, 3-way	B10-3	EACH
15.0 LPM (4.0 GPM	250 cc/min. (15 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	Push & Twist (N.C. & N.O.)	Size 10, 3-way	B10-3	EACH
15.0 LPM (4.0 GPM	250 cc/min. (15 in3/min.) at 350 Bar (5000 PSI)	350 Bar (5000 PSI)	Fluorocarbon	None	-31.7C to +121.1C (-25F to +250F)	Push & Twist (N.C. & N.O.)	Size 10, 3-way	B10-3	EACH

Showing 1 - 13 of 13

DSH103 Series Solenoid Valve - Spool Type - 3-Way (Coil Not Included)

Solenoid Valves
