	Department: Parker Divisions
	Division Name: Hydraulic Cartridge Systems
	Product: DSL105 Solenoid Valve

Automatically Selected

»	Valve Type Detail: Spool Type - 4-Way, 3-Position
»	Max Pressure: 250 Bar (3600 PSI)
»	Series: DSL105
»	Valve Type: Solenoid Valve
»	Port: None - Cartridge Only
»	Valve Style: 3-way or 4-way spool (see catalog for flow paths)
»	Common Cavity Type: Size 10, 4-way
»	Leakage: 160 cc/min. (10 in3/min.) at 250 Bar (3600 PSI)
»	Parker Division: Hydraulic Cartridge Systems
»	Screen: None
»	Valve Body: B10-4

AVAILABLE FILTERS

Override Type

Operating Temperature

Rated Flow

Seals

DSL105 Solenoid Valve

Click Image to Zoom

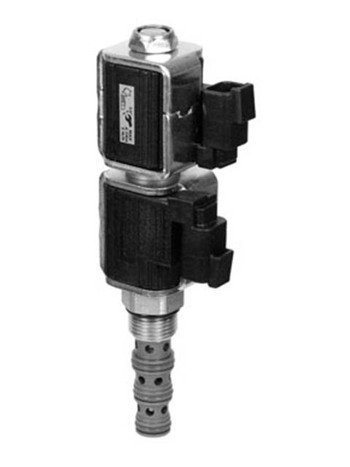

DSL105 Solenoid Valve

Spool Type - 4-Way, 3-Position Solenoid Valve for Size 10, 4-way Cavity (Coil Not Included)

Email this page to a friend

Showing 1 - 14 of 14

	Part #	Availability	Price
	DSL105C1	7	$137.12
	DSL105C1V	Backorder	$144.54
	DSL105C1M	Backorder	$235.62
	DSL105C1MV	Backorder	$243.05
	DSL105C2	Backorder	$151.47
	DSL105C2M	Backorder	$250.22
	DSL105C4	Backorder	$137.12
	DSL105C4V	Backorder	$144.54
	DSL105C4M	Backorder	$235.62
	DSL105C7	Backorder	$151.47
	DSL105C7M	Backorder	$250.22
	DSL105C9	Backorder	$151.47
	DSL105C9V	Backorder	$158.65
	DSL105C9M	Backorder	$250.22

Rated Flow	Leakage	Max Pressure	UOM	Seals	Screen	Operating Temperature	Override Type	Common Cavity	Valve Body
26.5 LPM (7 GPM)	160 cc/min. (10 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	EACH	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	None	Size 10, 4-way	B10-4
26.5 LPM (7 GPM)	160 cc/min. (10 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	EACH	Fluorocarbon	None	-31.7C to +121.1C (-25F to +250F)	None	Size 10, 4-way	B10-4
26.5 LPM (7 GPM)	160 cc/min. (10 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	EACH	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	Push Type with Flush Rod (N.O. Only)	Size 10, 4-way	B10-4
26.5 LPM (7 GPM)	160 cc/min. (10 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	EACH	Fluorocarbon	None	-31.7C to +121.1C (-25F to +250F)	Push Type with Flush Rod (N.O. Only)	Size 10, 4-way	B10-4
18.8 LPM (5 GPM)	160 cc/min. (10 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	EACH	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	None	Size 10, 4-way	B10-4
18.8 LPM (5 GPM)	160 cc/min. (10 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	EACH	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	Push Type with Flush Rod (N.O. Only)	Size 10, 4-way	B10-4
26.5 LPM (7 GPM)	160 cc/min. (10 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	EACH	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	None	Size 10, 4-way	B10-4
26.5 LPM (7 GPM)	160 cc/min. (10 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	EACH	Fluorocarbon	None	-31.7C to +121.1C (-25F to +250F)	None	Size 10, 4-way	B10-4
26.5 LPM (7 GPM)	160 cc/min. (10 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	EACH	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	Push Type with Flush Rod (N.O. Only)	Size 10, 4-way	B10-4
18.8 LPM (5 GPM)	160 cc/min. (10 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	EACH	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	None	Size 10, 4-way	B10-4
18.8 LPM (5 GPM)	160 cc/min. (10 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	EACH	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	Push Type with Flush Rod (N.O. Only)	Size 10, 4-way	B10-4
18.8 LPM (5 GPM)	160 cc/min. (10 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	EACH	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	None	Size 10, 4-way	B10-4
18.8 LPM (5 GPM)	160 cc/min. (10 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	EACH	Fluorocarbon	None	-31.7C to +121.1C (-25F to +250F)	None	Size 10, 4-way	B10-4
18.8 LPM (5 GPM)	160 cc/min. (10 in3/min.) at 250 Bar (3600 PSI)	250 Bar (3600 PSI)	EACH	“D”-Ring	None	-45C to +93.3C (-50F to +200F)	Push Type with Flush Rod (N.O. Only)	Size 10, 4-way	B10-4

Showing 1 - 14 of 14

DSL105 Series Solenoid Valve - Spool Type - 4-Way, 3-Position (Coil Not Included)
