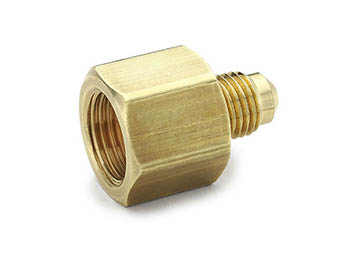

Male Flare to Female Flare 661FHD
Parker 45° Flare Brass Male Flare to Female Flare - Ref. SAE J512 and J513 010105
Email this page to a friend
Showing 1 - 9 of 9
| Part # | Availability | Price | |
|---|---|---|---|
| 661FHD-4-6 | 17 | $11.48 | |
| 661FHD-4-8 | 20 | $16.11 | |
| 661FHD-6-4 | 23 | $13.13 | |
| 661FHD-6-8 | 12 | $16.85 | |
| 661FHD-8-6 | 5 | $19.59 | |
| 661FHD-8-10 | 1 | $20.71 | |
| 661FHD-10-8 | 5 | $25.75 | |
| 661FHD-10-12 | 11 | $33.78 | |
| 661FHD-12-10 | 2 | $29.66 |
| Outer Diameter 1 | Outer Diameter 2 | Material | Thread 2 | UOM | Thread 1 |
|---|---|---|---|---|---|
| 1/4 Inch | 3/8 Inch | Brass | 5/8-18 UN/UNF | EACH | 7/16-20 UN/UNF |
| 1/4 Inch | 1/2 Inch | Brass | 3/4-16 UN/UNF | EACH | 7/16-20 UN/UNF |
| 3/8 Inch | 1/4 Inch | Brass | 7/16-20 UN/UNF | EACH | 5/8-18 UN/UNF |
| 3/8 Inch | 1/2 Inch | Brass | 3/4-16 UN/UNF | EACH | 5/8-18 UN/UNF |
| 1/2 Inch | 3/8 Inch | Brass | 5/8-18 UN/UNF | EACH | 3/4-16 UN/UNF |
| 1/2 Inch | 5/8 Inch | Brass | 7/8-14 UN/UNF | EACH | 3/4-16 UN/UNF |
| 5/8 Inch | 1/2 Inch | Brass | 3/4-16 UN/UNF | EACH | 7/8-14 UN/UNF |
| 5/8 Inch | 3/4 Inch | Brass | 1-1/16-14 UN/UNF | EACH | 7/8-14 UN/UNF |
| 3/4 Inch | 5/8 Inch | Brass | 7/8-14 UN/UNF | EACH | 1-1/16-14 UN/UNF |
Showing 1 - 9 of 9
Parker 45° flare fittings meet the functional requirements of SAE J512 and J513 and are listed with Underwriter’s Laboratories. For use with copper, brass, aluminum or steel tubing that can be flared to 45°.
