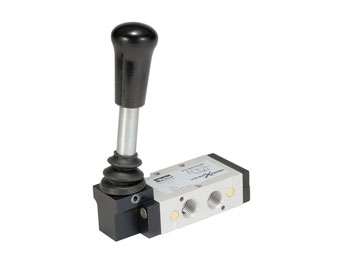

Viking Xtreme Series Manual/Mechanical Valve - 3-way 2-position Inline Perpendicular Lever
Viking Xtreme Series Manual/Mechanical Valve - 3-way 2-position Inline Perpendicular Lever
Email this page to a friend
Showing 1 - 16 of 16
| UOM | Port | CV Factor | Operator Type Detail | Offset Return Type |
|---|---|---|---|---|
| EACH | 1/8 NPT | 0.6 | Inline Perpendicular Lever | Spring Return |
| EACH | 1/4 NPT | 1.5 | Inline Perpendicular Lever | Spring Return |
| EACH | 3/8 NPT | 2.5 | Inline Perpendicular Lever | Spring Return |
| EACH | 1/2 NPT | 2.7 | Inline Perpendicular Lever | Spring Return |
| EACH | 1/8 BSPP | 0.6 | Inline Perpendicular Lever | Spring Return |
| EACH | 1/4 BSPP | 1.5 | Inline Perpendicular Lever | Spring Return |
| EACH | 3/8 BSPP | 2.5 | Inline Perpendicular Lever | Spring Return |
| EACH | 1/2 BSPP | 2.7 | Inline Perpendicular Lever | Spring Return |
| EACH | 1/8 NPT | 0.7 | Inline Perpendicular Lever | Detent |
| EACH | 1/4 NPT | 1.3 | Inline Perpendicular Lever | Detent |
| EACH | 3/8 NPT | 2.5 | Inline Perpendicular Lever | Detent |
| EACH | 1/2 NPT | 2.7 | Inline Perpendicular Lever | Detent |
| EACH | 1/8 BSPP | 0.7 | Inline Perpendicular Lever | Detent |
| EACH | 1/4 BSPP | 1.3 | Inline Perpendicular Lever | Detent |
| EACH | 3/8 BSPP | 2.5 | Inline Perpendicular Lever | Detent |
| EACH | 1/2 BSPP | 2.7 | Inline Perpendicular Lever | Detent |
Showing 1 - 16 of 16
Parker heavy duty inline lever operated pneumatic valves designed for applications requiring very rugged construction.
Port:
1/2 BSPP
CV Factor:
2.7
Operator Type Detail:
Inline Perpendicular Lever
Offset Return Type:
Detent
Pkg Qty:
1
UOM:
EA
