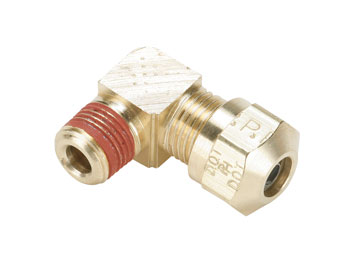

Air Brake-NTA VS269NTA
Male Elbow 90° - Compression Transportation Fitting
Email this page to a friend
Showing 1 - 17 of 17
| Outer Diameter 1 | Material | UOM | Thread 1 |
|---|---|---|---|
| 3/16 Inch | Brass | EACH | 1/8 NPT |
| 3/8 Inch | Brass | EACH | 1/8 NPT |
| 3/16 Inch | Brass | EACH | 1/4 NPT |
| 3/8 Inch | Brass | EACH | 1/4 NPT |
| 1/4 Inch | Brass | EACH | 1/8 NPT |
| 3/8 Inch | Brass | EACH | 3/8 NPT |
| 1/4 Inch | Brass | EACH | 1/4 NPT |
| 3/8 Inch | Brass | EACH | 1/2 NPT |
| 1/4 Inch | Brass | EACH | 3/8 NPT |
| 1/2 Inch | Brass | EACH | 1/4 NPT |
| 1/2 Inch | Brass | EACH | 3/8 NPT |
| 1/2 Inch | Brass | EACH | 1/2 NPT |
| 5/8 Inch | Brass | EACH | 3/8 NPT |
| 5/8 Inch | Brass | EACH | 1/2 NPT |
| 5/8 Inch | Brass | EACH | 3/4 NPT |
| 3/4 Inch | Brass | EACH | 1/2 NPT |
| 3/4 Inch | Brass | EACH | 3/4 NPT |
Showing 1 - 17 of 17
Parker's Air Brake-NTA Series Male Elbow 90° utilize a ribbed sleeve for compression and positive grip. Fittings meet SAE and
D.O.T. specifications. Designed for all D.G311O.T truck and trailer applications.
Application:
Transportation: Heavy Duty Truck, Trailer, Mobile
Specific Application:
Air Brakes, Air Tanks, Air Ride, Sliders, Tire Inflation, Primary & Secondary, Air Lines, Cab Controls
SAE Compliance:
Functional Requirements SAE J246 & SAE J1131 and D.O.T. FMVSS571.106 Performance
