Part # | Availability | Price | |
---|---|---|---|
60G049 | Backorder | $1,258.80 | |
60G069 | Backorder | $1,558.80 | |
60G089 | Backorder | $1,678.80 |
Connects to Dim "A" | Diameter Dim "B" | Length Dim "C" | Term. Thread Dim "D" | UOM |
---|---|---|---|---|
-4 (7/16-20) | 0.99 | 2.95 | 1/8" NPT | EACH |
-6 (5/8-18) | 1.19 | 2.95 | 3/8" NPT | EACH |
-8(3/4-16) | 1.58 | 3.15 | 3/8" NPT | EACH |

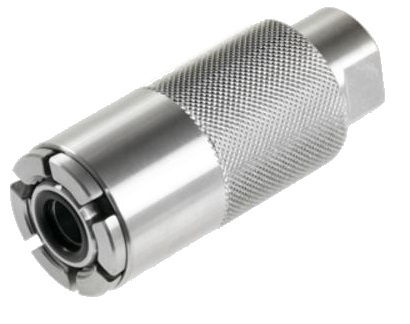

The FasTest 60 Series connectors are the preferred method for fast, safe and repeatable connections to a variety of thread profiles used in the process and manufacturing industries for filling, pressure and leak testing, and instrument calibration. Simply pull back on latching sleeve, insert male thread into the connector and push the latching sleeve forward to complete the connection. Remove test pressure and pull back the latching sleeve to release the connection.
- Connections from vacuum to 750 psi
