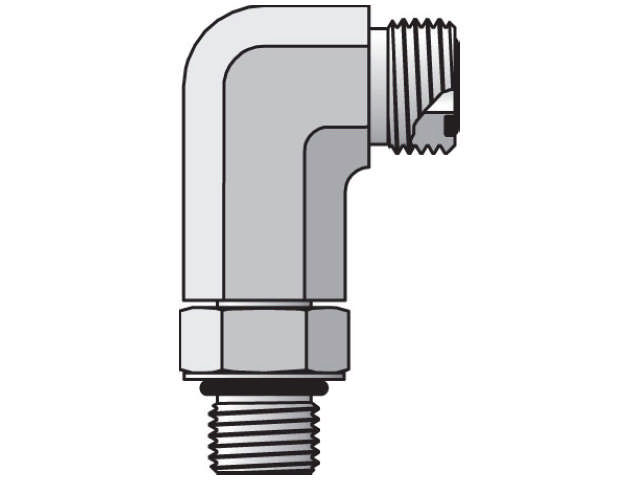

Seal-Lok ORFS 90° Elbow CC5OLO
Seal-Lok - Long Straight Thread Elbow ORFS-Long / SAE-ORB
Email this page to a friend
Showing 1 - 6 of 6
| Part # | Availability | Price | |
|---|---|---|---|
| 4 CC5OLO-S | 59 | $31.72 | |
| 6 CC5OLO-S | 122 | $33.84 | |
| 8 CC5OLO-S | 443 | $36.28 | |
| 10 CC5OLO-S | 21 | $64.99 | |
| 12 CC5OLO-S | 46 | $110.81 | |
| 16 CC5OLO-S | 326 | $127.44 |
| End 1 | End 2 | Material | UOM |
|---|---|---|---|
| 1/4 Inch | 7/16-20 UN/UNF-2A | Steel | EACH |
| 3/8 Inch | 9/16-18 UN/UNF-2A | Steel | EACH |
| 1/2 Inch | 3/4-16 UN/UNF-2A | Steel | EACH |
| 5/8 Inch | 7/8-14 UN/UNF-2A | Steel | EACH |
| 3/4 Inch | 1 1/16-12 UN/UNF-2A | Steel | EACH |
| 1 Inch | 1 5/16-12 UN/UNF-2A | Steel | EACH |
Showing 1 - 6 of 6
Seal-Lok O-Ring Face Seal Tube Fittings have proven to be very effective in eliminating leakage at the higher pressures found in today’s hydraulic systems. The Seal-Lok fitting is an O-ring face seal type fitting that consists of a nut, a body, an O-ring and a sleeve. Seal-Lok fittings are suitable for a wide range of tube wall thicknesses and are readily adaptable to pipe, inch or metric tubing and hose.
