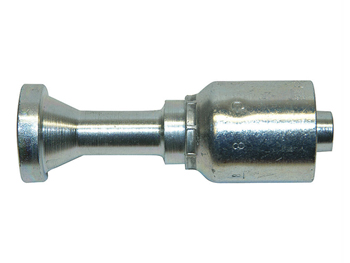

77 Series 16A77

Parkrimp Permanent SAE Code 62 Flange Head

Email this page to a friend

Showing 1 - 13 of 13

Part #	Availability	Price
16A77-12-12	376	$69.74
16A77-12-16	40	$84.40
16A77-16-12	1,342	$78.67
16A77-16-16	1,401	$74.92
16A77-16-20	92	$114.89
16A77-20-16	1,645	$114.13
16A77-20-20	4,277	$109.41
16A77-20-24	66	$132.38
16A77-24-20	222	$116.74
16A77-24-24	1,512	$125.83
16A77-32-24	269	$219.69
16A77-32-32	1,417	$242.24
16A77-8-8	32	$47.93

Flange	Hose I.D.	Material	UOM
3/4 Inch	3/4 Inch	Steel	EACH
3/4 Inch	1 Inch	Steel	EACH
1 Inch	3/4 Inch	Steel	EACH
1 Inch	1 Inch	Steel	EACH
1 Inch	1 1/4 Inch	Steel	EACH
1 1/4 Inch	1 Inch	Steel	EACH
1 1/4 Inch	1 1/4 Inch	Steel	EACH
1 1/4 Inch	1 1/2 Inch	Steel	EACH
1 1/2 Inch	1 1/4 Inch	Steel	EACH
1 1/2 Inch	1 1/2 Inch	Steel	EACH
2 Inch	1 1/2 Inch	Steel	EACH
2 Inch	2 Inch	Steel	EACH
1/2 Inch	1/2 Inch	Steel	EACH

Showing 1 - 13 of 13

77 Series Parker Fitting is a Parkrimp permanent (crimp) style fitting which permits quick assembly with our family of Parkrimp crimpers. Assembly of No-Skive hose and fittings does not require removal of the outer cover of the hose. This eliminates premature hose failure caused by skiving too long or short.
