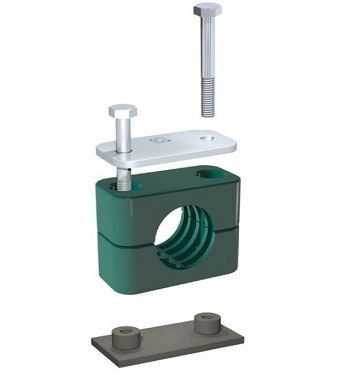

SP Standard Series Weld Plate Kit
Kit consiting of clamp halves, cover plate, bolts and weld plate
Email this page to a friend
| Clamp Group | Clamp Diameter | Thread | Clamp Material | Weld Plate Material | UOM |
|---|---|---|---|---|---|
| 1A | 1/4" inch | 1/4-20 UNC x 1-1/4 | Polypropylene | Carbon Steel, Phosphated | EACH |
| 1 | 1/4" inch | 1/4-20 UNC x 1-1/4 | Polypropylene | Carbon Steel, Phosphated | EACH |
| 2 | 1/2" inch | 1/4-20 UNC x 1-3/8 | Polyamide | Carbon Steel, Phosphated | EACH |
| 2 | 1/2" inch | 1/4-20 UNC x 1-3/8 | Polypropylene | Carbon Steel, Phosphated | EACH |
| 2 | 14mm | 1/4-20 UNC x 1-3/8 | Polypropylene | Carbon Steel, Phosphated | EACH |
| 2 | 17,2mm | 1/4-20 UNC x 1-3/8 | Polypropylene | Carbon Steel, Phosphated | EACH |
| 3 | 3/4" inch | 1/4-20 UNC x 1-1/2 | Polypropylene | Carbon Steel, Phosphated | EACH |
| 3 | 3/4" inch | 1/4-20 UNC x 1-1/2 | Polypropylene | Carbon Steel, Phosphated | EACH |
| 3 | 21,3mm | 1/4-20 UNC x 1-1/2 | Polypropylene | Carbon Steel, Phosphated | EACH |
| 3 | 1" inch | 1/4-20 UNC x 1-1/2 | Polypropylene | Carbon Steel, Phosphated | EACH |
| 3 | 1" inch | 1/4-20 UNC x 1-1/2 | Polypropylene | Carbon Steel, Phosphated | EACH |
| 4 | 26,9mm | 1/4-20 UNC x 1-7/8 | Polypropylene | Carbon Steel, Phosphated | EACH |
| 4 | 28mm | 1/4-20 UNC x 1-7/8 | Polypropylene | Carbon Steel, Phosphated | EACH |
| 4 | 28mm | 1/4-20 UNC x 1-7/8 | Polypropylene | Stainless Steel V2A | EACH |
| 5 | 1-1/4" inch | 1/4-20 UNC x 2-3/8 | Polypropylene | Carbon Steel, Phosphated | EACH |
| 5 | 1-1/4" inch | 1/4-20 UNC x 2-3/8 | Polypropylene | Carbon Steel, Phosphated | EACH |
| 5 | 33,7mm | 1/4-20 UNC x 2-3/8 | Polypropylene | Carbon Steel, Phosphated | EACH |
| 5 | 1-1/2" inch | 1/4-20 UNC x 2-3/8 | Polypropylene | Carbon Steel, Phosphated | EACH |
| 5 | 1-1/2" inch | 1/4-20 UNC x 2-3/8 | Polypropylene | Carbon Steel, Phosphated | EACH |
| 6 | 2" inch | 1/4-20 UNC x 2-3/4 | Polypropylene | Carbon Steel, Phosphated | EACH |
Stauff Inch Standard Series clamp products are designed for restraining tube, pipe and hose assemblies against unwanted and potentially harmful effects of mechanical shock and vibration forces that are common in fluid power systems.
Clamp Group:
7
Thread:
1/4-20 UNC x 4
Type:
Type SP
Clamp Material:
Polypropylene
