| Body Material | Connection Size | UOM | Connection Style | Pressure Range |
|---|---|---|---|---|
| Carbon Steel, zinc/iron-plated | 3/8" Inch | EACH | Female NPT Thread | 500 bar / 7,250 PSI |
| Carbon Steel, zinc/iron-plated | 1/2" Inch | EACH | Female NPT Thread | 500 bar / 7,250 PSI |
| Carbon Steel, zinc/iron-plated | 3/4" Inch | EACH | Female NPT Thread | 500 bar / 7,250 PSI |
| Carbon Steel, zinc/iron-plated | 1" Inch | EACH | Female NPT Thread | 500 bar / 7,250 PSI |
| Carbon Steel, zinc/iron-plated | 1/2" Inch | EACH | Female UN/UNF Thread SAE | 500 bar / 7,250 PSI |
| Stainless Steel | 3/4" Inch | EACH | Female UN/UNF Thread SAE | 500 bar / 7,250 PSI |
Showing 1 - 6 of 6

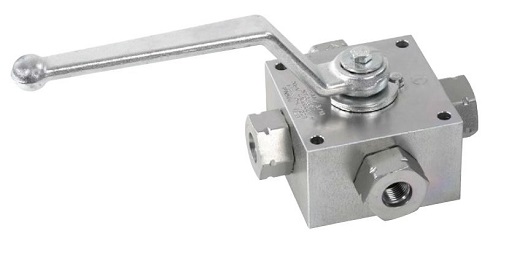

Four-way high-pressure block body ball valve designed for use as 4-way selectors (double L-bore, 90 degree operation with closed position) for hydraulic applications Old Part NumberXBV41121101M
