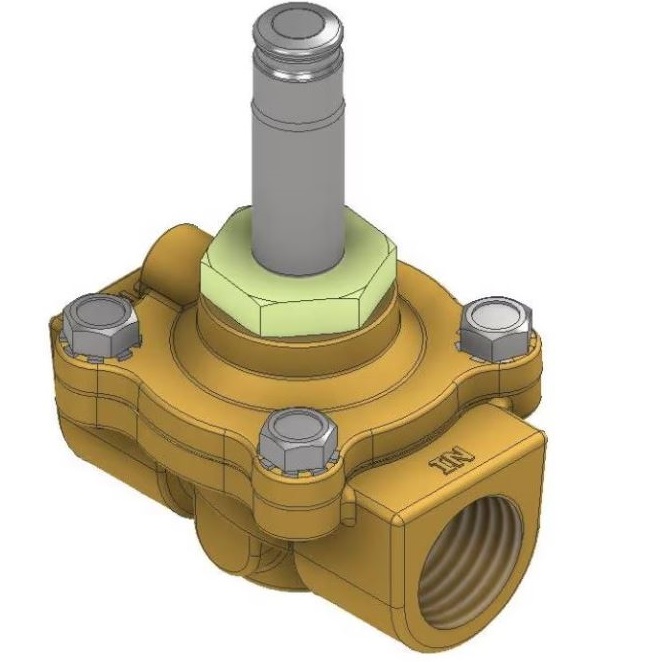

Parker 22/23 Series - General Purpose Brass Solenoid Valve - No Coil
This series is general superseded by G7 Series 22/23 Valves.
| Part #: 08F22C2240A3F | Manufacturer: Parker - Fluid Control Division |
|
Price/UOM: $197.82
|
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
Parker Gold Ring legacy product has a rich history in industrial and commerical applications.
Email this page to a friend
Product Attributes
| Valve Configuration: | 2 Way |
| Body Material: | Brass |
| Orifice Size: | 5/8 inch |
| Function: | Normally Closed |
| Port Size: | 1/2 inch |
| Power Consumption: | 6.0 W |
| Actuation Type: | Internally Piloted |
| Coil Type: | Requires Coil from Chart 1 |
| Maximum Fluid Temperature: | 150.0 °F |
| Maximum Ambient Temperature: | 77.0 °F |
| Maximum Pressure Differential: | 100 (125 Air, Inert Gas) psi |
| Division: | Fluid Control Division |
| Input Voltage: | Pressure Vessel Only |
| Seal Material: | FKM |
| Port Type: | NPT |
| Minimum Pressure Differential: | 5.0 psi |
| Media: | General Purpose |
| Preventive Maintenance Kit: | 08F22C2240A3FR |
| Main Flow Coefficient: | 4.0 Cv |
| Installation: | IOM 7321 |
| Weight: | 2.3 LB |
| UOM: | EACH |
