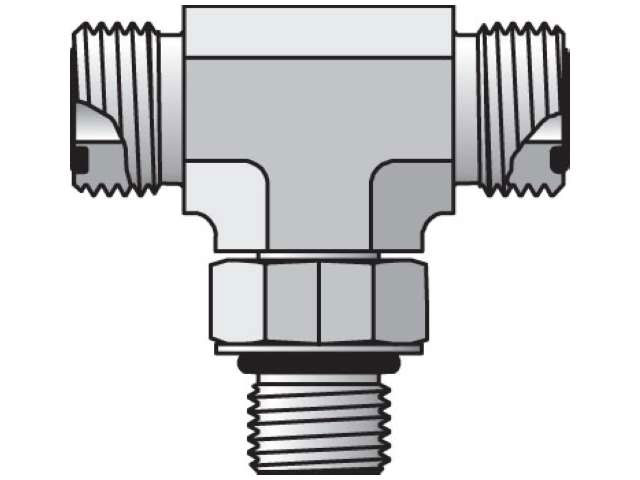

Seal-Lok ORFS Tee S5OLO
Seal-Lok - Straight Thread Branch Tee ORFS / ORFS / SAE-ORB
| Part #: 10-10-12 S5OLO-S | Manufacturer: Parker - Tube Fittings Division |
|
Price/UOM: $69.70
|
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
Seal-Lok O-Ring Face Seal Tube Fittings have proven to be very effective in eliminating leakage at the higher pressures found in today’s hydraulic systems. The Seal-Lok fitting is an O-ring face seal type fitting that consists of a nut, a body, an O-ring and a sleeve. Seal-Lok fittings are suitable for a wide range of tube wall thicknesses and are readily adaptable to pipe, inch or metric tubing and hose.
Email this page to a friend
Product Attributes
| End 1: | 5/8 Inch |
| End 2: | 5/8 Inch |
| End 3: | 7/8-14 UN/UNF-2A |
| Material: | Steel |
| UOM: | EACH |
| Series: | ORFS |
| Trade Name: | Seal-Lok |
| Tube Fitting/Adapter Type: | ORFS, Seal-Lok O-Ring Face Seal |
| Configuration Type: | Tee |
| Configuration Sub-Type: | Straight Thread Branch Tee ORFS / ORFS / SAE-ORB |
| Inch/Metric: | Inch |
| Parker Group: | Fluid Connector |
| End 3 Type: | UN/UNF-2A |
| Parker Division: | Tube Fitting |
| End 2 Type: | Inch |
| End 1 Type: | Inch |
| End 1: | 1/4 Inch |
| End 2: | 1/4 Inch |
| End 3: | 9/16-18 UN/UNF-2A |
Part Number Tags
10-10-12 S5OLO-S
