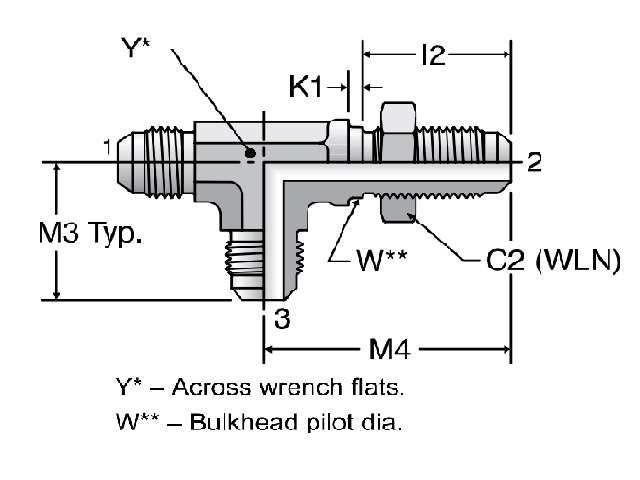

Triple-Lok 37° Tee WJJTX-WLN
Triple-Lok - Bulkhead Run Tee 37° Flare (all three ends)
| Part #: 10 WJJTX-WLN-S | Manufacturer: Parker - Tube Fittings Division |
|
Price/UOM: $65.28
|
Availability: 25 |
| UOM: EACH |
Triple-Lok® 37° flare tube fittings and adapters are the most popular industrial tube/hose fitting connection in the world. Simply by changing the industry standard sleeve, the same Triple-Lok body can be adapted to metric tubing in sizes ranging from 6 mm tube O.D. to 38 mm tube O.D. Likewise, by using only the body without the nut and sleeve, the Triple-Lok fitting is used as an industry standard hose adapter.
Email this page to a friend
Product Attributes
| End 1: | 5/8 Inch |
| End 2: | 5/8 Inch |
| End 3: | 5/8 Inch |
| Material: | Steel |
| UOM: | EACH |
| Series: | 37° |
| Trade Name: | Triple-Lok |
| Tube Fitting/Adapter Type: | 37°, Triple-Lok |
| Configuration Type: | Tee |
| Configuration Sub-Type: | Bulkhead Run Tee 37° Flare (all three ends) |
| Inch/Metric: | Inch |
| Parker Group: | Fluid Connector |
| End 3 Type: | Inch |
| Parker Division: | Tube Fitting |
| End 1 Type: | Inch |
| End 2 Type: | Inch |
| End 1: | 3/4 Inch |
| End 2: | 3/4 Inch |
| End 3: | 3/4 Inch |
Part Number Tags
10 WJJTX-WLN-S
