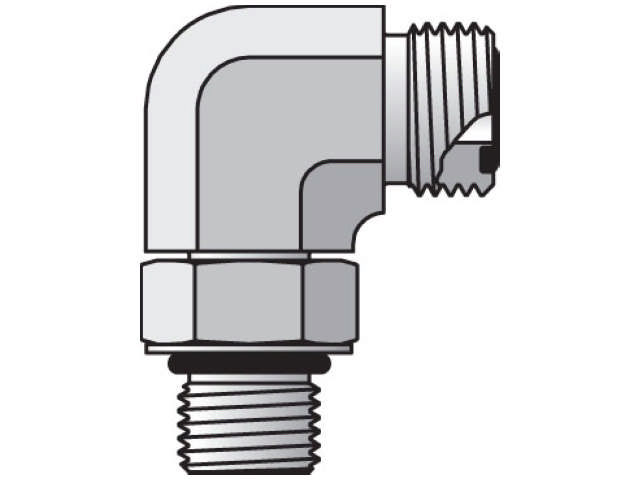

Seal-Lok ORFS 90° Elbow C5OLO
Seal-Lok - Straight Thread Elbow ORFS / SAE-ORB
| Part #: 12-16 C5OLO-S | Manufacturer: Parker - Tube Fittings Division |
|
Price/UOM: $44.65
|
Availability: 1,050 |
| UOM: EACH |
Seal-Lok O-Ring Face Seal Tube Fittings have proven to be very effective in eliminating leakage at the higher pressures found in today’s hydraulic systems. The Seal-Lok fitting is an O-ring face seal type fitting that consists of a nut, a body, an O-ring and a sleeve. Seal-Lok fittings are suitable for a wide range of tube wall thicknesses and are readily adaptable to pipe, inch or metric tubing and hose.
Email this page to a friend
Product Attributes
| End 1: | 3/4 Inch |
| End 2: | 1 5/16-12 UN/UNF-2A |
| Material: | Steel |
| UOM: | EACH |
| Series: | ORFS |
| Trade Name: | Seal-Lok |
| Tube Fitting/Adapter Type: | ORFS, Seal-Lok O-Ring Face Seal |
| Configuration Type: | 90° Elbow |
| Configuration Sub-Type: | Straight Thread Elbow ORFS / SAE-ORB |
| Inch/Metric: | Inch |
| Parker Group: | Fluid Connector |
| Parker Division: | Tube Fitting |
| End 2 Type: | UN/UNF-2A |
| End 1 Type: | Inch |
Part Number Tags
12-16 C5OLO-S
