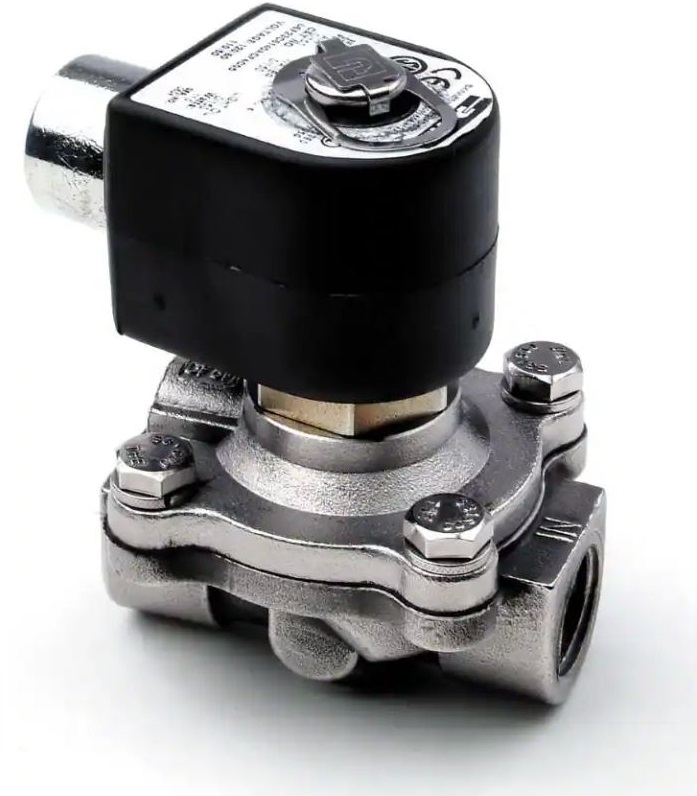

Parker 22/23 Series - General Purpose Solenoid Stainless Steel Valve
This series is general superseded by G7 Series 22/23 Valves.
| Part #: 12F22C6148A3F4C75 | Manufacturer: Parker - Fluid Control Division |
|
Price/UOM: $1,050.78
|
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
Parker Gold Ring legacy product has a rich history in industrial and commerical applications.
Email this page to a friend
Product Attributes
| Body Material: | 316 Stainless Steel |
| Orifice Size: | 3/4 inch |
| Function: | Normally Closed |
| Actuation Type: | Internally Piloted |
| Power Consumption: | 11.5 W |
| Port Size: | 3/4 inch |
| Valve Configuration: | 2 Way |
| Media: | General Purpose |
| Coil Type: | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) |
| Seal Material: | NBR |
| Main Flow Coefficient: | 5.0 Cv |
| Input Voltage: | 12.0 VDC |
| Minimum Pressure Differential: | 5.0 psi |
| Installation: | IOM 7321 |
| Insulation Class: | Class F |
| Preventive Maintenance Kit: | 12F22C6148A3FR |
| Maximum Pressure Differential: | 100 (125 Air, Inert Gas) psi |
| Division: | Fluid Control Division |
| Ingress Protection Rating: | NEMA 4,4X |
| UOM: | EACH |
| Maximum Ambient Temperature: | 77.0 °F |
| Maximum Fluid Temperature: | 150.0 °F |
| Port Type: | NPT |
| Specifications Met: | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC |
| Weight: | 2.6 LB |
Product Resources
N/A
Part Number Tags
12F22C6148A3F4C75
