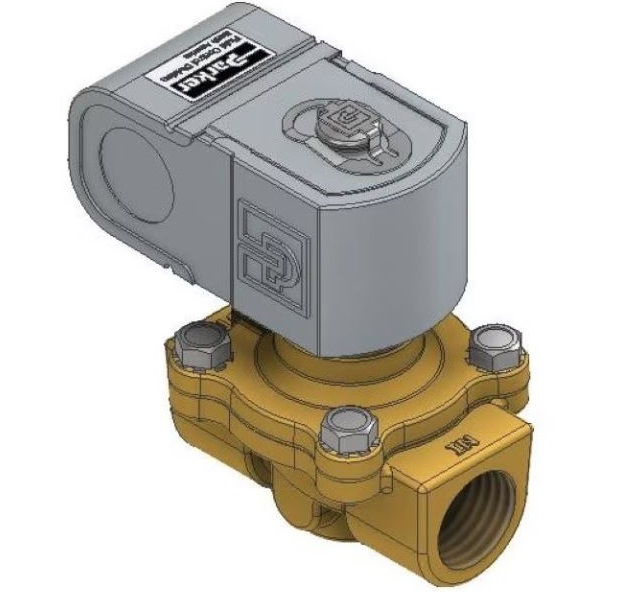

Parker 22/23 Series - General Purpose Brass Solenoid Valve - Splice Box
This series is general superseded by G7 Series 22/23 Valves.
| Part #: 12F23O2148ACFSB05 | Manufacturer: Parker - Fluid Control Division |
|
Price/UOM: $508.54
|
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
Parker Gold Ring legacy product has a rich history in industrial and commerical applications.
Email this page to a friend
Product Attributes
| Valve Configuration: | 2 Way |
| Port Size: | 3/4 inch |
| Orifice Size: | 3/4 inch |
| Power Consumption: | 11.0 W |
| Body Material: | Brass |
| Actuation Type: | Direct Lift |
| Function: | Normally Open |
| Coil Type: | Splice Box w/ 6" Leads |
| Port Type: | NPT |
| Seal Material: | NBR |
| Maximum Fluid Temperature: | 150.0 °F |
| Division: | Fluid Control Division |
| Minimum Pressure Differential: | 0.0 psi |
| Insulation Class: | Class F |
| Preventive Maintenance Kit: | 12F23O2148ACFR |
| Weight: | 2.6 LB |
| Main Flow Coefficient: | 5.0 Cv |
| Specifications Met: | UL, CSA Recognized General Purpose Valve; CE - Low Voltage, EMC |
| Maximum Pressure Differential: | 150.0 psi |
| Maximum Ambient Temperature: | 130.0 °F |
| Ingress Protection Rating: | NEMA 1 |
| Media: | General Purpose |
| Installation: | IOM 7321 |
| Input Voltage: | 120/60, 110/50 VAC |
| UOM: | EACH |
