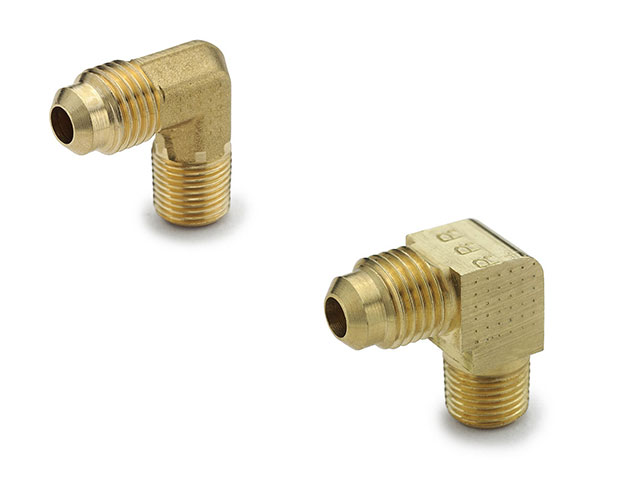

Male Elbow 149F-249F
Parker 45° Flare Brass Male Elbow - Ref. SAE J512 and J513 010202
| Part #: 149F-6-2 | Manufacturer: Parker - Fluid System Connectors Division |
|
Price/UOM: $7.35
|
Availability: 591 |
| UOM: EACH |
Parker 45° flare fittings meet the functional requirements of SAE J512 and J513 and are listed with Underwriter’s Laboratories. For use with copper, brass, aluminum or steel tubing that can be flared to 45°.
Email this page to a friend
Product Attributes
| Outer Diameter 1: | 3/8 Inch |
| Material: | Brass |
| Thread 2: | 1/8 NPT |
| UOM: | EACH |
| Thread 1: | 5/8-18 UN/UNF |
| Inch/Metric: | Inch |
| Pressure Rating: | 1000 PSI |
| Configuration Type: | Flare to Male |
| Configuration Sub-Type: | Male Elbow 90° |
| Series: | 45° Flare |
| Outer Diameter 1 Inch/mm: | Inch |
| Thread 2 Type: | NPT |
| Thread 1 Type: | UN/UNF |
| Operating Temperature: | -65°F to +250°F |
| Parker Group: | Fluid Connector |
| Parker Division: | Fluid Systems Connector (Brass Products) |
| SAE Compliance: | J512 and J513 |
| SAE Reference: | SAE 010202 |
| Body Shape: | Extruded |
Part Number Tags
149F-6-2
