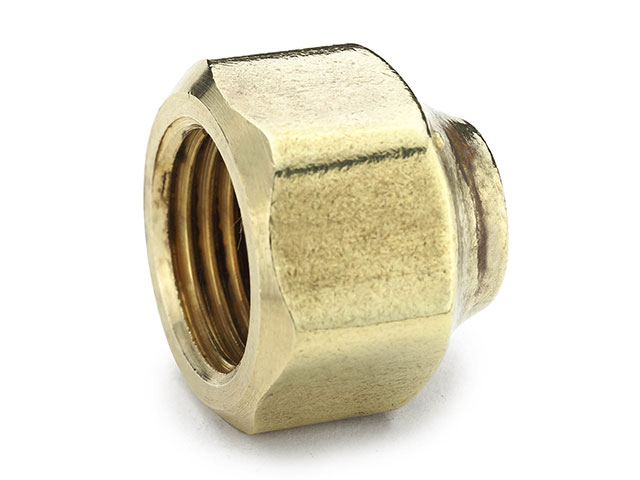

Short Forged Reducing Nuts 14FS
Parker 45° Flare Brass Short Forged Reducing Nuts - Ref. SAE J512 and J513
| Part #: 14FS-10-8 | Manufacturer: Parker - Fluid System Connectors Division |
|
Price/UOM: $13.00
|
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
Parker 45° flare fittings meet the functional requirements of SAE J512 and J513 and are listed with Underwriter’s Laboratories. For use with copper, brass, aluminum or steel tubing that can be flared to 45°.
Email this page to a friend
Product Attributes
| Outer Diameter 1: | 5/8 Inch |
| Outer Diameter 2: | 1/2 Inch |
| Material: | Brass |
| Thread 1: | 7/8-14 UN/UNF |
| UOM: | EACH |
| Series: | 45° Flare |
| Pressure Rating: | 1400 PSI |
| Configuration Type: | Auxiliary |
| Configuration Sub-Type: | Nut |
| Outer Diameter 1 Inch/mm: | Inch |
| Outer Diameter 2 Inch/mm: | Inch |
| Inch/Metric: | Inch |
| Thread 2 Type: | UN/UNF |
| Thread 1 Type: | UN/UNF |
| Operating Temperature: | -65°F to +250°F |
| Parker Group: | Fluid Connector |
| Parker Division: | Fluid Systems Connector (Brass Products) |
| SAE Compliance: | J512 and J513 |
| SAE Reference: | SAE 010108 |
