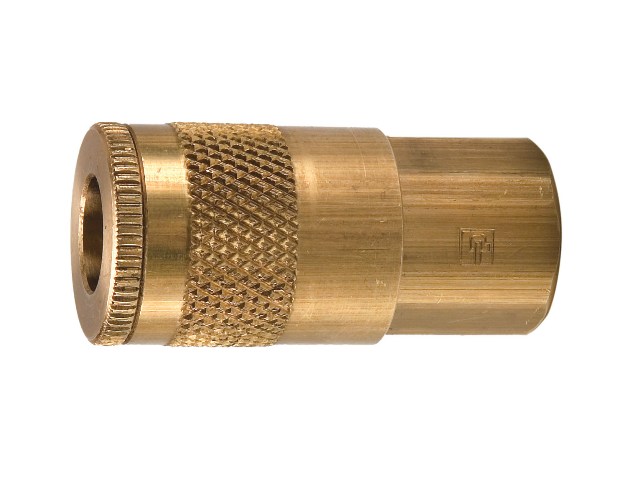

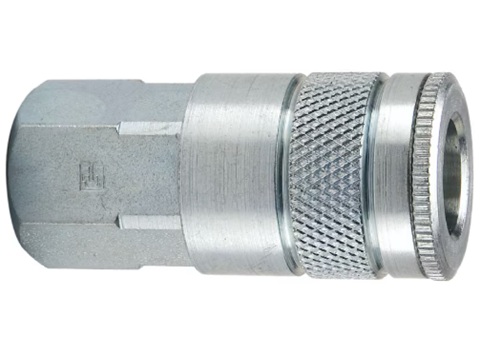

10 Series Coupler - Female Pipe
Tru-Flate Pneumatic Manual Connect
| Part #: 15 | Manufacturer: Parker - Quick Coupling Division |
|
Price/UOM: $36.31
|
Availability: 1,499 |
| UOM: EACH |
Parker 10 Series Tru-Flate Quick Disconnect Coupler are general purpose, single shut off, manual sleeve, quick disconnects. The manual ball locking mechanism requires two-handed operation to retract the sleeve for connection or disconnection.
Email this page to a friend
Product Attributes
| Max Pressure: | 300 PSI (20 bar) |
| Body Size: | 3/8 Inch |
| Configuration Type: | Female NPTF |
| Material: | Steel |
| Thread 1: | 1/8 NPTF |
| UOM: | EACH |
| Series: | 10 |
| Quick Coupler Type: | Pneumatic Manual Connect |
| Trade Name: | Tru-Flate |
| Max Pressure Range: | 250 to 499 PSI (17 to 34 bar) |
| Inch/Metric: | Inch |
| Thread 1 Type: | NPTF |
| Application: | Pneumatic |
| Parker Group: | Fluid Connector |
| Parker Division: | Quick Coupling |
| Coupler/Nipple/Shell: | Coupler |
