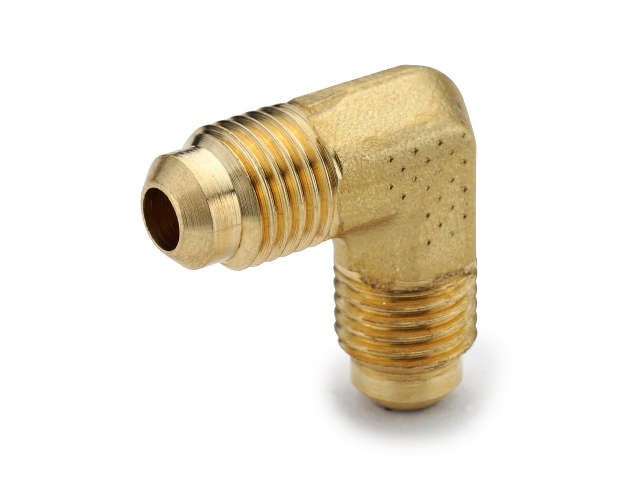

Union Elbow 155F
Parker 45° Flare Brass Union Elbow - Ref. SAE J512 and J513 010201
| Part #: 155F-4 | Manufacturer: Parker - Fluid System Connectors Division |
|
Price/UOM: $7.68
|
Availability: 110 |
| UOM: EACH |
Parker 45° flare fittings meet the functional requirements of SAE J512 and J513 and are listed with Underwriter’s Laboratories. For use with copper, brass, aluminum or steel tubing that can be flared to 45°.
Email this page to a friend
Product Attributes
| Outer Diameter 1: | 1/4 Inch |
| Outer Diameter 2: | 1/4 Inch |
| Material: | Brass |
| Thread 2: | 7/16-20 UN/UNF |
| UOM: | EACH |
| Thread 1: | 7/16-20 UN/UNF |
| Inch/Metric: | Inch |
| Pressure Rating: | 1200 PSI |
| Configuration Type: | Flare to Flare |
| Configuration Sub-Type: | Union Elbow 90° |
| Series: | 45° Flare |
| Outer Diameter 2 Inch/mm: | Inch |
| Outer Diameter 1 Inch/mm: | Inch |
| Thread 1 Type: | UN/UNF |
| Thread 2 Type: | UN/UNF |
| Parker Group: | Fluid Connector |
| Parker Division: | Fluid Systems Connector (Brass Products) |
| Operating Temperature: | -65°F to +250°F |
| SAE Compliance: | J512 and J513 |
| SAE Reference: | SAE 010201 |
| Body Shape: | Forged |
Part Number Tags
155F-4
