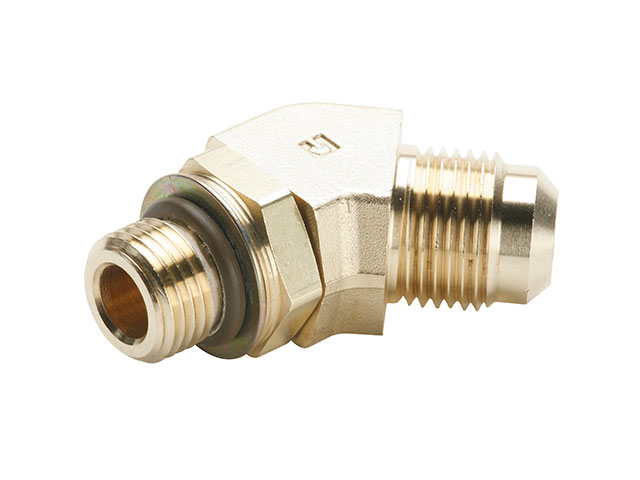

45° Flare to SAE Straight Thread 1595F
Parker 45° Flare Brass 45° Flare to SAE Straight Thread - Ref. SAE J512 and J513
| Part #: 1595F-12-12 | Manufacturer: Parker - Fluid System Connectors Division |
|
Price/UOM: $42.18
|
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
Parker 45° flare fittings meet the functional requirements of SAE J512 and J513 and are listed with Underwriter’s Laboratories. For use with copper, brass, aluminum or steel tubing that can be flared to 45°.
Email this page to a friend
Product Attributes
| Outer Diameter 1: | 3/4 Inch |
| Thread 2: | 1 1/16-12 SAE |
| Material: | Brass |
| Thread 1: | 1 1/16-14 UN/UNF |
| UOM: | EACH |
| Series: | 45° Flare |
| Pressure Rating: | 1400 PSI |
| Configuration Type: | Flare to Male |
| Configuration Sub-Type: | Male Elbow 45° |
| Outer Diameter 1 Inch/mm: | Inch |
| Inch/Metric: | Inch |
| Thread 2 Type: | SAE |
| Thread 1 Type: | UN/UNF |
| Parker Group: | Fluid Connector |
| Parker Division: | Fluid Systems Connector (Brass Products) |
| Operating Temperature: | -65°F to +250°F |
| SAE Compliance: | J512 and J513 |
| Body Shape: | Forged |
