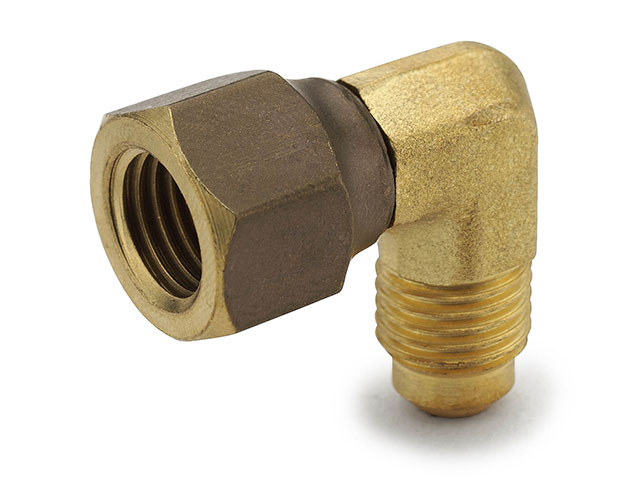

90° Swivel Elbow 166FSV
Parker 45° Flare Brass 90° Swivel Elbow - Ref. SAE J512 and J513
| Part #: 166FSV-10-10 | Manufacturer: Parker - Fluid System Connectors Division |
|
Price/UOM: $28.91
|
Availability: 17 |
| UOM: EACH |
Parker 45° flare fittings meet the functional requirements of SAE J512 and J513 and are listed with Underwriter’s Laboratories. For use with copper, brass, aluminum or steel tubing that can be flared to 45°.
Email this page to a friend
Product Attributes
| Outer Diameter 1: | 5/8 Inch |
| Outer Diameter 2: | 5/8 Inch |
| Material: | Brass |
| Thread 2: | 7/8-14 UN/UNF |
| UOM: | EACH |
| Thread 1: | 7/8-14 UN/UNF |
| Inch/Metric: | Inch |
| Configuration Type: | Flare to Female |
| Configuration Sub-Type: | Female Elbow 90° |
| Series: | 45° Flare |
| Outer Diameter 2 Inch/mm: | Inch |
| Outer Diameter 1 Inch/mm: | Inch |
| Thread 2 Type: | UN/UNF |
| Thread 1 Type: | UN/UNF |
| Pressure Rating: | 550 PSI |
| Operating Temperature: | -65°F to +250°F |
| Parker Group: | Fluid Connector |
| Parker Division: | Fluid Systems Connector (Brass Products) |
| SAE Compliance: | J512 and J513 |
| Body Shape: | Forged |
Part Number Tags
166FSV-10-10
