167HY-6-6 HY Series 167HY
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW

HY Series 167HY

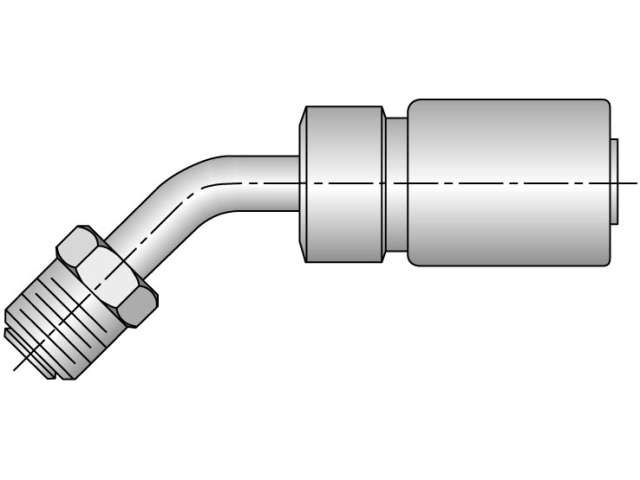

Parkrimp Permanent Male Inverted SAE 45° - Swivel - 45° Elbow

Part #: 167HY-6-6 Manufacturer: Parker
Price/UOM: $17.79
Availability: Contact Us
Inventory May Vary by Location
UOM: EA

Description:
HY Series Parker Fitting is a permanent (crimp) style fitting which permits quick assembly with our family of Parker crimpers. Assembly of No-Skive hose and fittings does not require removal of the outer cover of the hose. This eliminates premature hose failure caused by skiving too long or short. HY Series Fittings has Chromium-6 free plating and are used with Parker Hydraulic/Braided Hoses.
Email this page to a friend


Product Attributes


End 1: 3/8 Inch
Inner Diameter: 0.375 Inch
Material: Steel
UOM: EA
Series: HY
Trade Name: Parkrimp
Configuration Type: Male Inverted SAE 45° - Swivel - 45° Elbow
Inch/Metric: Inch
End 1 Type: Inch
Parker Group: Fluid Connector
Inner Diameter Inch/mm: Inch
Parker Division: Hose Products
Hose Connection Type: Permanent


Part Number Tags: 167HY-6-6
