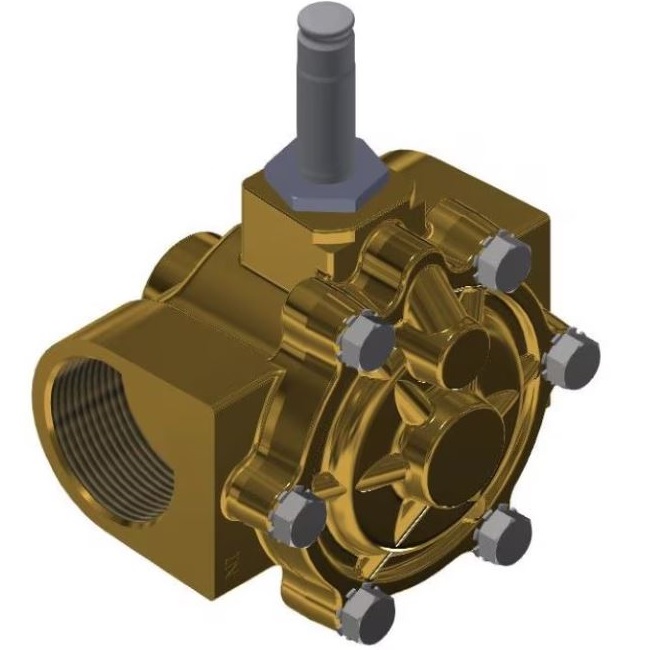

Parker 24 Series - High Flow General Purpose Brass Solenoid Valve - No Coil
High Flow General Purpose Solenoid Valves
| Part #: 16F24C2164AAF | Manufacturer: Parker - Fluid Control Division |
|
Price/UOM: $417.80
|
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
High Flow General Purpose Solenoid Valves
Email this page to a friend
Product Attributes
| Valve Configuration: | 2 Way |
| Body Material: | Brass |
| Orifice Size: | 1 inch |
| Function: | Normally Closed |
| Port Size: | 1 inch |
| Power Consumption: | 6.0 W |
| Actuation Type: | Internally Piloted |
| Coil Type: | Requires Coil from Chart 1 |
| Maximum Fluid Temperature: | 180.0 °F |
| Maximum Ambient Temperature: | 130.0 °F |
| Maximum Pressure Differential: | 150 (100 Light Oil) psi |
| Division: | Fluid Control Division |
| Input Voltage: | Pressure Vessel Only |
| Seal Material: | NBR |
| Port Type: | NPT |
| Minimum Pressure Differential: | 5.0 psi |
| Media: | General Purpose |
| Preventive Maintenance Kit: | 16F24C2164AAFR |
| Main Flow Coefficient: | 13.0 Cv |
| Installation: | IOM 7235 |
| Specifications Met: | UL, CSA Listed General Purpose Valve |
| Weight: | 1 LB |
| UOM: | EACH |
