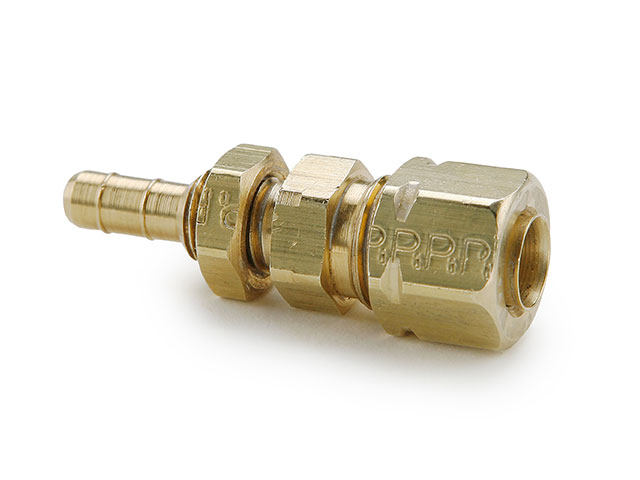

Bulkhead Union - Tube to Compress-Align 22CABH
Parker Dubl-Barb Brass Bulkhead Union - Tube to Compress-Align
| Part #: 22CABH-4-4 | Manufacturer: Parker - Fluid System Connectors Division |
|
Price/UOM: $11.05
|
Availability: 398 |
| UOM: EACH |
Parker Dubl-Barb barbed fittings are economical push-on fittings for use with polyethylene tubing. We recommend Parker Parflex brand polyethylene tubing for best results.
Email this page to a friend
Product Attributes
| Outer Diameter 1: | 1/4 Inch |
| Outer Diameter 2: | 1/4 Inch |
| Material: | Brass |
| Inner Diameter 1: | 0.170 Inch |
| UOM: | EACH |
| Thread 1: | 5/16-24 UN/UNF |
| Inch/Metric: | Inch |
| Trade Name: | Dubl-Barb |
| Configuration Type: | Adapter |
| Configuration Sub-Type: | Union Bulkhead |
| Series: | Dubl-Barb |
| Outer Diameter 2 Inch/mm: | Inch |
| Outer Diameter 1 Inch/mm: | Inch |
| Inner Diameter 1 Inch/mm: | Inch |
| Thread 1 Type: | UN/UNF |
| Operating Temperature: | -65°F to +75°F |
| Parker Group: | Fluid Connector |
| Parker Division: | Fluid Systems Connector (Brass Products) |
Part Number Tags
22CABH-4-4
