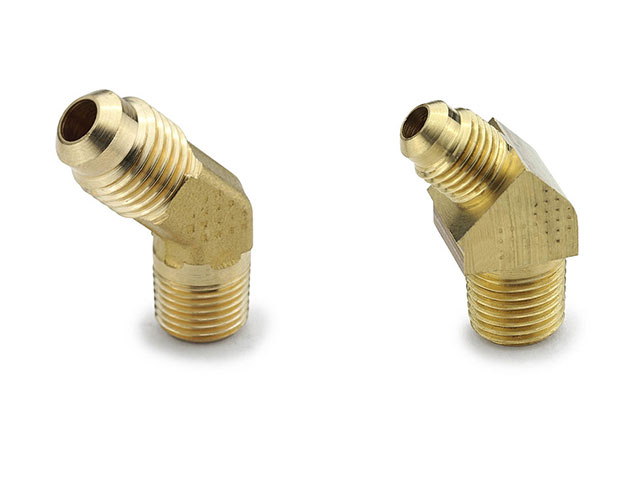

45° Elbow 159F-259F
Parker 45° Flare Brass 45° Elbow - Ref. SAE J512 and J513 010302
| Part #: 259F-4-4 | Manufacturer: Parker - Fluid System Connectors Division |
|
Price/UOM: $11.07
|
Availability: 1 |
| UOM: EACH |
Parker 45° flare fittings meet the functional requirements of SAE J512 and J513 and are listed with Underwriter’s Laboratories. For use with copper, brass, aluminum or steel tubing that can be flared to 45°.
Email this page to a friend
Product Attributes
| Outer Diameter 1: | 1/4 Inch |
| Thread 2: | 1/4 NPT |
| Material: | Brass |
| Thread 1: | 7/16-20 UN/UNF |
| UOM: | EACH |
| Series: | 45° Flare |
| Pressure Rating: | 1200 PSI |
| Configuration Type: | Flare to Male |
| Configuration Sub-Type: | Male Elbow 45° |
| Outer Diameter 1 Inch/mm: | Inch |
| Inch/Metric: | Inch |
| Thread 1 Type: | UN/UNF |
| Thread 2 Type: | NPT |
| Parker Group: | Fluid Connector |
| Parker Division: | Fluid Systems Connector (Brass Products) |
| Operating Temperature: | -65°F to +250°F |
| SAE Compliance: | J512 and J513 |
| SAE Reference: | SAE 010302 |
| Body Shape: | Forged |
Part Number Tags
259F-4-4
