30682-6-6B 82 Series 30682
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW

82 Series 30682

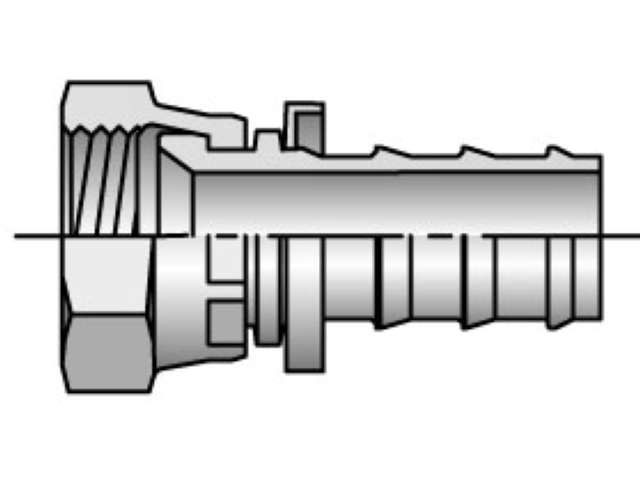

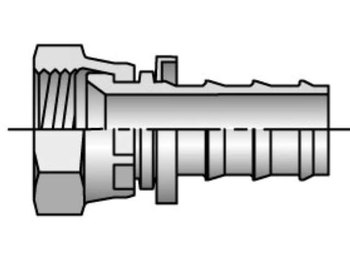

Push-Lok Barbed Female JIC 37° - Swivel - Straight

Part #: 30682-6-6B Manufacturer: Parker
Price/UOM: $4.73
Availability: In Stock
Inventory May Vary by Location
UOM: EA

Description:
Parker No-Skive 82 Series "Push-Lok®" Fittings is a 1-piece field attachable (reusable) push-on style fitting which permits quick, easy field assembly without special tools. Assembly of 82 Series No-Skive hose and fittings does not require a clamp. 82 Series Fittings are available in brass or steel with zinc dichromate plating and are used with 801, 804, 821, 821FR, 831, 836 Hoses - the Parker Pneumatic "Push-Lok" Hoses.
Email this page to a friend


Product Attributes


End 1: 3/8 Inch
Inner Diameter: 0.375 Inch
Material: Brass
UOM: EA
Series: 82
Trade Name: Push-Lok
Configuration Type: Female JIC 37° - Swivel - Straight
Inch/Metric: Inch
Parker Group: Fluid Connector
End 1 Type: Inch
Inner Diameter Inch/mm: Inch
Parker Division: Hose Products
Hose Connection Type: Barbed


Part Number Tags: 30682-6-6B
