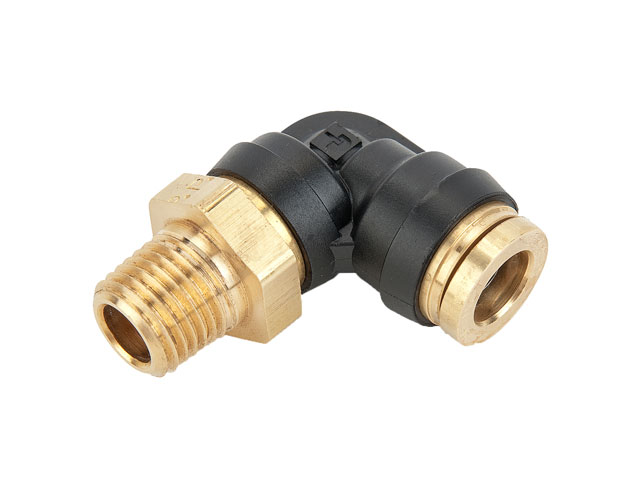

PTC Composite 369PTC
Male Elbow Swivel 90° - Push-to-Connect Transportation Fitting
| Part #: 369PTC-12-12 | Manufacturer: Parker - Fluid System Connectors Division |
| Price/UOM: Call To Place Order |
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
Parker's PTC Composite Series Male Elbow Swivel 90° is a composite push-to-connect fitting that meets SAE and D.O.T. specifications.
Designed for all D.O.T truck and trailer applications, Parker PTC fittings reduce assembly time versus
compression style fittings.
Email this page to a friend
Product Attributes
| Outer Diameter 1: | 3/4 Inch |
| Material: | Composite, Brass |
| UOM: | EACH |
| Thread 1: | 3/4 NPT |
| Configuration Type: | Tube to Male |
| Series: | PTC Composite |
| Pressure Range: | Up to 250 PSI |
| Configuration Sub-Type: | Male Elbow Swivel 90° |
| Outer Diameter 1 Inch/mm: | Inch |
| Inch/Metric: | Inch |
| Thread 1 Type: | NPT |
| Parker Division: | Fluid Systems Connector (Brass Products) |
| Operating Temperature: | -40°F to +200°F |
| Application: | Transportation: Heavy Duty Truck, Trailer, Mobile |
| Specific Application: | Air Brakes, Air Tanks, Air Ride, Sliders, Tire Inflation, Primary & Secondary, Air Lines, Cab Controls |
| SAE Compliance: | SAE J1131 & SAE J2494-3 and D.O.T. FMVSS571.106 |
