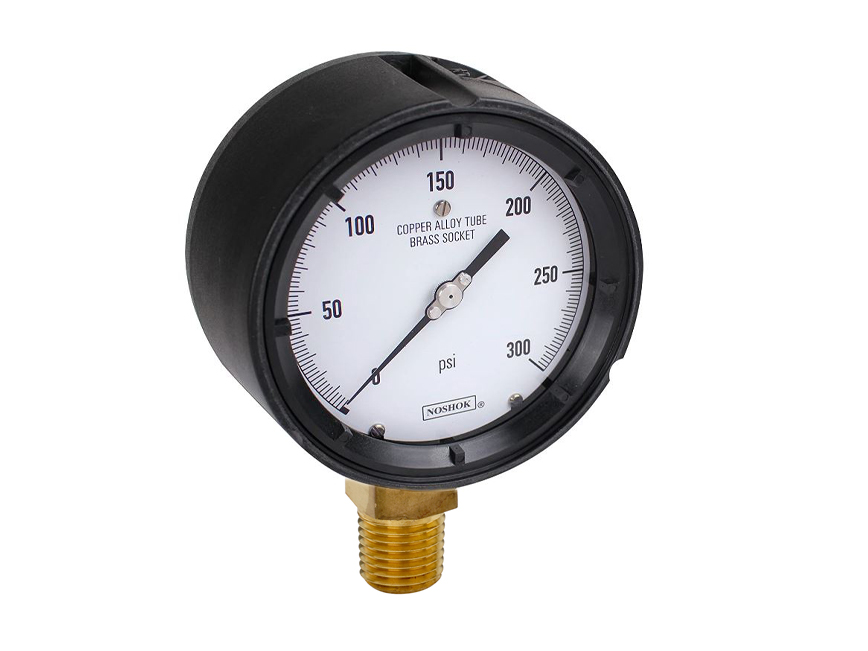

Noshok - 600 Series Gauge - Brass Dry - Bottom Connection
Click Image to Zoom

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION. PLEASE DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE.

Noshok - 600 Series Gauge - Brass Dry - Bottom Connection

Brass Dry Bottom Connection

Part #: 45-640-15-PSI Manufacturer: NOSHOK Gauges
Price/UOM: $161.16
Availability: Out of Stock

Please Contact Us for Lead Time

UOM: EACH

Turret style dry (field fillable) and liquid filled process gauges & with vacuum and compound ranges, and Brass or Stainless Steel case. Ideal for applications including Injection molding machines, Injection molding machines, Power generation , Utilities, Water & wastewater and more.

Multiple connection options are available including panel mount. A wide variety of pressure ranges, scale options, connections sizes, and options including flanges, case options, cover rings, lens materials, pointers, and orifices are also available.



  • Turret style dry (field fillable) and liquid filled process gauges
  • Vacuum and compound ranges through 0 psi to 15,000 psi
  • 4-1/2" gauge sizes
  • Black Polypropylene safety case with solid front and blow-out back
  • 316 Stainless Steel or Brass wetted parts



Noshok Gauges



Noshok Gauges



Working Pressure Limitations

Dynamic Pressure

The working pressure should be limited to 60% of the dial range. Max. 0.9x full scale.

Static Pressure

The working pressure, where no sharp fluctuations occur, should be limited to 90% of the dial range. Max. 1x full scale.

Short term max

1.5x full scale (<10,000 psi.).



Email this page to a friend
Product Attributes
Gauge Sizes: 4 1/2 inch
Pressure Range: 0 PSI to 15 PSI
Scale Option: psi single scale
UOM: EACH
Connection Size: 1/4 NPT
Connection Material: 316 Stainless Steel or Brass Wetted Parts
Case Type: Brass, Dry, Bottom Connection
Series: 600 series
