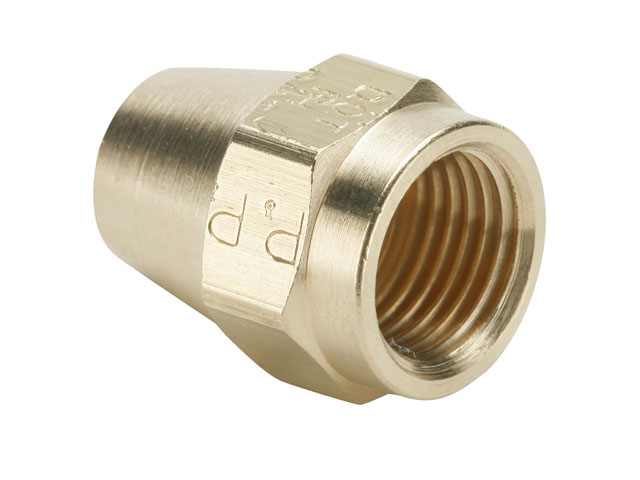

Air Brake-AB 61AB
Nut - Compression Transportation Fitting
| Part #: 61AB-4 | Manufacturer: Parker - Fluid System Connectors Division |
|
Price/UOM: $1.49
|
Availability: 5 |
| UOM: EACH |
Parker's Air Brake-AB Series Nut are economical compression style fittings for copper air brake lines. AB
fittings meet the functional requirements of SAE and the performance requirements of D.O.T.
Email this page to a friend
Product Attributes
| Outer Diameter 1: | 1/4 Inch |
| Material: | Brass |
| UOM: | EACH |
| Configuration Type: | Auxiliary |
| Series: | Air Brake-AB |
| Pressure Range: | Up to 400 psi |
| Configuration Sub-Type: | Nut |
| Outer Diameter 1 Inch/mm: | Inch |
| Inch/Metric: | Inch |
| Operating Temperature: | -65Ëš to 250ËšF |
| Parker Division: | Fluid Systems Connector (Brass Products) |
| SAE Reference: | SAE 120111 |
| Application: | Transportation: Heavy Duty Truck, Trailer, Mobile |
| Specific Application: | Copper Air Brake Lines, Coolant Lines, Fuel Lines |
| SAE Compliance: | Functional Requirements SAE J246 and D.O.T. FMVSS571.106 Performance |
Part Number Tags
61AB-4
