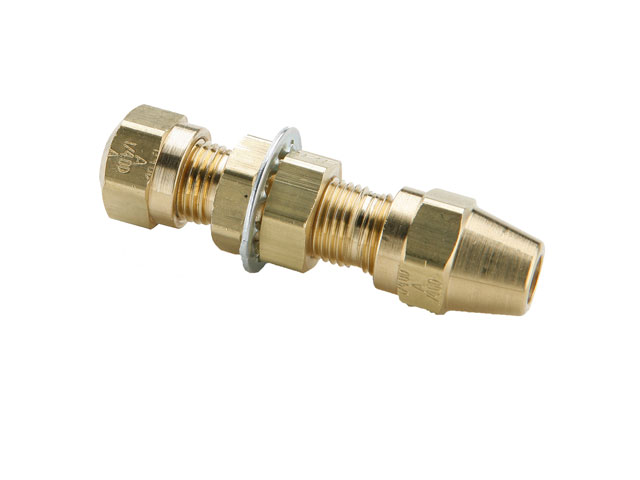

62ANBH-8 Air Brake-NTA 62ANBH
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW

Air Brake-NTA 62ANBH

Union Bulkhead - Compression Transportation Fitting

Part #: 62ANBH-8 Manufacturer: Parker
Price/UOM: $32.04In Stock!
Availability: Contact Us
UOM: EA

Description:
Parker's Air Brake-NTA Series Union Bulkhead utilize a ribbed sleeve for compression and positive grip. Fittings meet SAE and D.O.T. specifications. Designed for all D.G311O.T truck and trailer applications.
Email this page to a friend


Product Attributes


Outer Diameter 1: 1/2 Inch
Material: Brass
UOM: EA
Pressure Range: Up to 150 PSI
Series: Air Brake-NTA
Trade Name: Air Brake-NTA
Configuration Type: Tube to Tube
Configuration Sub-Type: Union Bulkhead
Outer Diameter 1 Inch/mm: Inch
Inch/Metric: Inch
Operating Temperature: -40°F to +200°F
Parker Division: Fluid Systems Connector (Brass Products)
Application: Transportation: Heavy Duty Truck, Trailer, Mobile
Specific Application: Air Brakes, Air Tanks, Air Ride, Sliders, Tire Inflation, Primary & Secondary, Air Lines, Cab Controls
SAE Compliance: Functional Requirements SAE J246 & SAE J1131 and D.O.T. FMVSS571.106 Performance


Part Number Tags: 62ANBH-8
