LIQUIfit 6509 - Metric

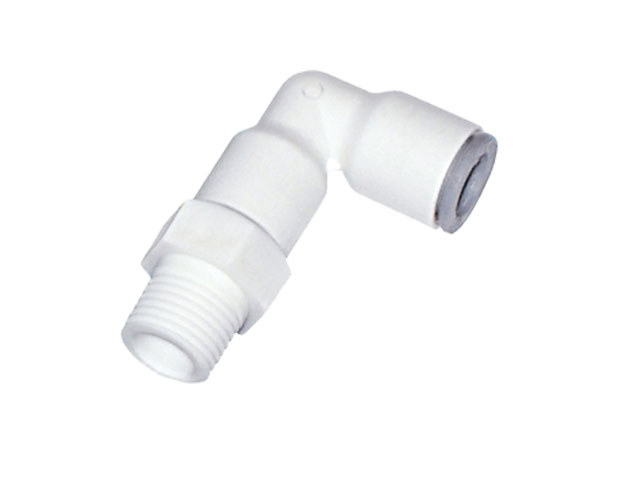

Male Elbow Swivel 90° - Push-in Water & Beverage Fitting
| Part #: 6509 08 10WP2 | Manufacturer: Parker - Fluid System Connectors Division |
|
Price/UOM: $5.99
|
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
Parker/Legris LIQUIfit Series Male Elbow Swivel 90° offers an “eco-designed” innovative push-to-connect alternative for water and beverage applications; no fluid contamination occurs and environmental protection is guaranteed. Patented sealing technology 100% leak-tested in production.
Email this page to a friend
Product Attributes
| Outer Diameter 1: | 8 mm |
| Material: | Polypropylene |
| Thread 1: | 1/8 BSPT |
| UOM: | EACH |
| Series: | LIQUIfit |
| Trade Name: | LIQUIfit |
| Configuration Type: | Tube to Male |
| Pressure Range: | Up to 230 psi |
| Configuration Sub-Type: | Male Elbow Swivel 90° |
| Outer Diameter 1 Inch/mm: | mm |
| Inch/Metric: | Metric-BSPT |
| Thread 1 Type: | BSPT |
| Parker Division: | Fluid Systems Connector (Brass Products) |
| Operating Temperature: | -14˚ to 200˚F |
| Application: | Water, Beverages, Food, CO2 |
| Specific Application: | Meets FDA, NSF 51 and NSF 61 requirements |
Part Number Tags
6509 08 10WP2
