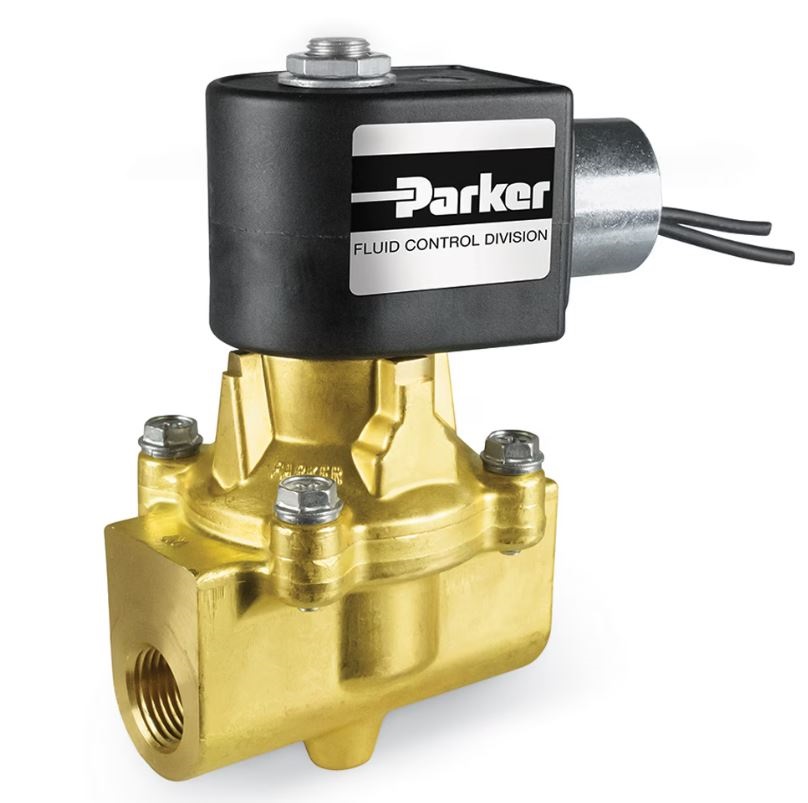

Parker UL 429A Listed Actuating Valves
UL 429A certified solenoid valves are required for use as pre-action pilot valves in various fire suppression deluge systems.
| Part #: 73218BN4UNLVN0C111C6 | Manufacturer: Parker - Fluid Control Division |
|
Price/UOM: $353.95
|
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
Parker Fluid Control Division offers decades of experience in critical fire-supression applications and is a preferred partner of major fire suppression OEMs and integrators. FCD's robust pre-action deluge pilot valves are 100% factory tested and 3rd party-certified by UL to standard UL 429A (certificate no. 20190411 – EX2170)
Email this page to a friend
Product Attributes
| Seal Material: | NBR |
| Coil Type: | 1/2" NPT Conduit w/ 18" Leads |
| Port Size: | 1/2 inch |
| Port Type: | NPT |
| Maximum Fluid Temperature: | 185 °F |
| Orifice Size: | 45785 |
| Configuration: | All Ports in Body |
| Minimum Pressure Differential: | 5 |
| Valve Type: | 2-Way |
| Power Consumption: | 10 |
| Body Material: | Brass |
| Preventive Maintenance Kit: | 7K815 |
| Main Flow Coefficient: | 4 |
| Actuation Type: | Internal Pilot |
| Specifications Met: | CSA listed Safety Shutoff Valve C22.2 No. 139-13 |
| Maximum Pressure Differential: | 175 |
| Maximum Ambient Temperature: | 150 °F |
| Ingress Protection Rating: | NEMA 4 |
| Function: | Normally Closed (NC) |
| Installation: | IOM 7212 |
| Input Voltage: | 120 VDC |
| Division: | Fluid Control Division |
| Weight: | 2 LB |
| UOM: | EACH |
Part Number Tags
73218BN4UNLVN0C111C6
Product Resources
N/A
