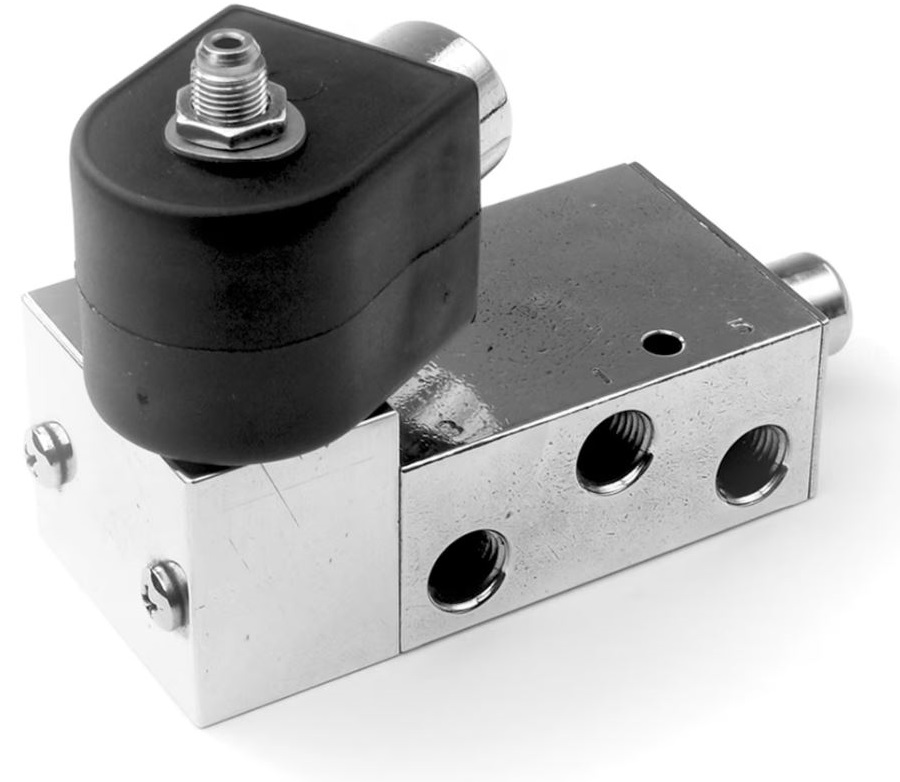

Parker 7 Family 4-Way VAP
Parker's VAP (Valve Actuation Process) control valves are used in the word's toughest applications where uptime and compliance are critical.
| Part #: 73417BN2PN00NKHZ103N | Manufacturer: Parker - Fluid Control Division |
|
Price/UOM: $740.54
|
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
These time-tested 4-Way valves are used to actuate double acting cylinders and pilot larger process control valves in some of the world's most demanding applications. SIL 3 capable, with service down to -40°F / -40°C, these valves are known for their reliability; plus a myriad of compliant electrical options for North America and rest-of-world (RoW) make these valves a defacto global standard in process control markets.
Email this page to a friend
Product Attributes
| Body Material: | Brass |
| Orifice Size: | 1/4 inch |
| Valve Type: | 4-Way (5/2) |
| Function: | 2-Position |
| Port Size: | 1/4 inch |
| Power Consumption: | 10 W |
| Actuation Type: | Internal Pilot |
| Coil Type: | 3000 mm Cable mm |
| Maximum Fluid Temperature: | 150 °F |
| Maximum Ambient Temperature: | 167 °F |
| Maximum Pressure Differential: | 150.0 psi |
| Division: | Fluid Control Division |
| Input Voltage: | 125 VDC |
| Seal Material: | NBR - Low Temp |
| Port Type: | NPT |
| Minimum Pressure Differential: | 30 psi |
| Media: | Air |
| Ingress Protection Rating: | Ex Mb IIC T4/T5 |
| Preventive Maintenance Kit: | 7K701 |
| Minimum Fluid Temperature: | -40 °F |
| Main Flow Coefficient: | 1.2 Cv |
| Installation: | IOM 7505 |
| Specifications Met: | LCIE 02 ATEX 6019 x IECEx LCI 08.0026 X |
| Weight: | 1.5 LB |
| UOM: | EACH |
Part Number Tags
73417BN2PN00NKHZ103N
