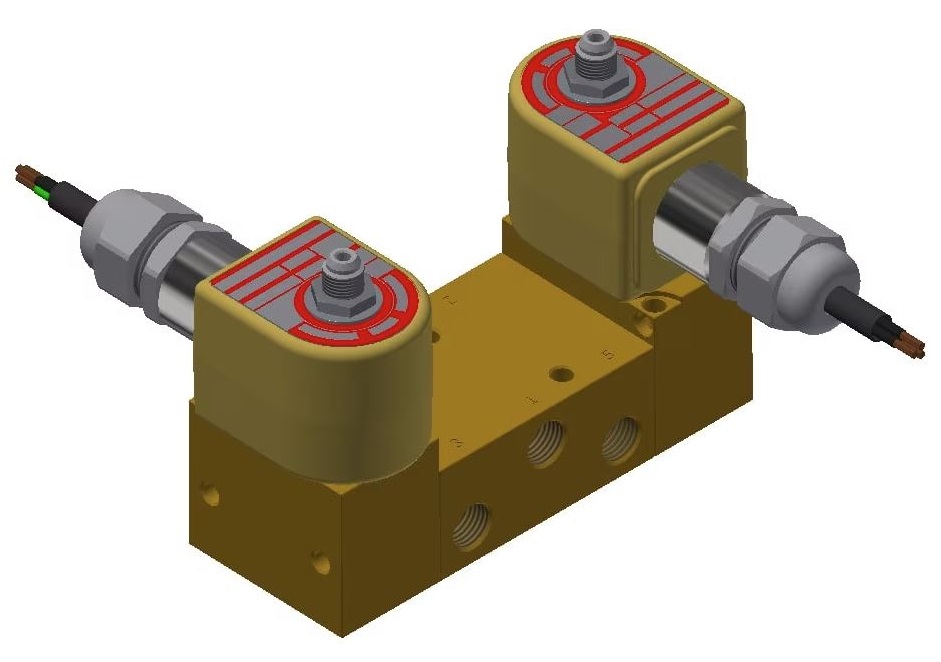

Parker 7 Family 4-Way Dual Solenoid VAP
Parker's VAP (Valve Actuation Process) control valves are used in the word's toughest applications where uptime and compliance are critical.
| Part #: 73477BN2PNM0N0H611C2 | Manufacturer: Parker - Fluid Control Division |
|
Price/UOM: $1,074.73
|
Availability: Out of Stock
Please Contact Us for Lead Time |
| UOM: EACH |
These time-tested 4-Way valves are used to actuate double acting cylinders and pilot larger process control valves in some of the world's most demanding applications. SIL 3 capable, with service down to -40°F / -40°C, these valves are known for their reliability; plus a myriad of compliant electrical options for North America and rest-of-world (RoW) make these valves a defacto global standard in process control markets.
Email this page to a friend
Product Attributes
| Body Material: | Brass |
| Orifice Size: | 1/4 inch |
| Valve Type: | 4-Way (5/2) |
| Function: | Dual Solenoid |
| Port Size: | 1/4 inch |
| Power Consumption: | 1.5 W |
| Actuation Type: | Internal Pilot |
| Coil Type: | 1/2" Conduit, 18" Leads |
| Seal Material: | NBR - Low Temp |
| Maximum Fluid Temperature: | 150 °F |
| Division: | Fluid Control Division |
| Minimum Pressure Differential: | 30 psi |
| Insulation Class: | F (155°C) |
| Preventive Maintenance Kit: | 7K706 |
| Weight: | 1.8 LB |
| Main Flow Coefficient: | 1.2 Cv |
| Port Type: | NPT |
| Specifications Met: | UL |
| Maximum Pressure Differential: | 150.0 psi |
| Minimum Fluid Temperature: | -40 °F |
| Maximum Ambient Temperature: | 167 °F |
| Ingress Protection Rating: | CSA Class 1, Div. 1 |
| Media: | Inert Gases |
| Override Functionality: | Locking Manual Override |
| Installation: | IOM 7701 |
| Input Voltage: | 24 VDC |
| UOM: | EACH |
