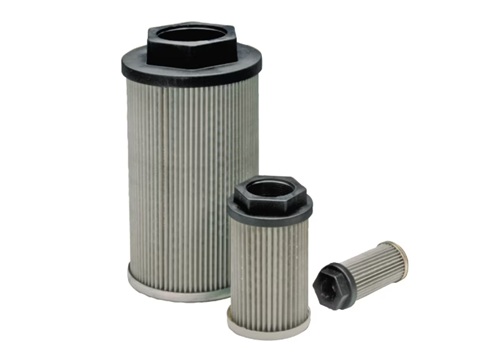

Suction Elements / Inbuilt Filters - SE Series

Parker SE Series suction elements / inbuilt reservoir filters are designed to prevent large objects (i.e., stones, deposits, sticks, etc.) from entering hydraulic system pumps, which can cause increased wear and tear to critical components, shorter maintenance intervals, and added downtime. The elements are designed for installation inside the reservoir / tank and are equipped with 125 micron rating abs steel wire mesh media, which provides maximum filtration efficiency and full fluid flow, thus ensuring reliable system performance. Multiple filter flow capacities (15 - 500 L/min) and mounting threads (Gandfrac12;, G¾, G1, G1andfrac12;, G2, G2andfrac12;, G3) are available to meet the unique requirements of customersandrsquo; systems. Suction elements with an integrated 0.17 bar bypass valve are also available as an option. Typical applications for SE Series tank inbuilt filters include saw mills, agricultural machines, articulated dump trucks, forestry equipment, wheeled loaders, lubricated systems, excavators, industrial power units, and mobile cranes. Benefits: Prevents ingress of large objects into hydraulic systems Lengthens time in between required maintenance intervals, reduces operating costs, and extends overall equipment/machine operational life Features: Capable of flows up to 500 l/min (132 gpm). Operating temperature range: -30 to +90anddeg;C (-22 to +194anddeg;F) Optional 0.17 bar bypass valve available Connections: threads: Gandfrac12;, G¾, G1, G1andfrac12;, G2, G2andfrac12;, G3andquot; For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor.
