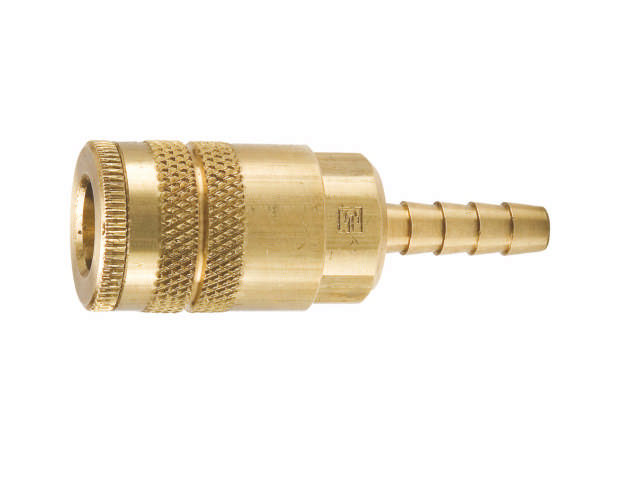

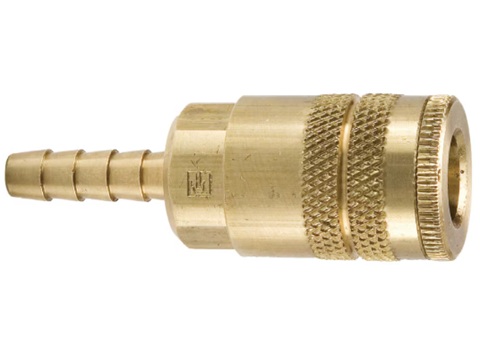

20 Series Coupler - Hose Barb
Pneumatic Manual Connect Industrial Interchange
| Part #: B20-4B | Manufacturer: Parker - Quick Coupling Division |
|
Price/UOM: $23.77
|
Availability: 115 |
| UOM: EACH |
Parker 20 Series Couplers (Industrial Interchange) are general purpose, single shut off, manual sleeve, quick disconnects. The manual ball locking mechanism requires two-handed operation to retract the sleeve for connection or disconnection.
Email this page to a friend
Product Attributes
| Max Pressure: | 300 PSI (20 bar) |
| Body Size: | 1/4 Inch |
| Inner Diameter: | .3125 Inch |
| Configuration Type: | Hose Barb |
| Material: | Brass |
| UOM: | EACH |
| Series: | 20 |
| Quick Coupler Type: | Pneumatic Manual Connect |
| Interchange: | Industrial Interchange |
| Max Pressure Range: | 250 to 499 PSI (17 to 34 bar) |
| Inch/Metric: | Inch |
| Application: | Pneumatic |
| Parker Group: | Fluid Connector |
| Inner Diameter Inch/mm: | Inch |
| Parker Division: | Quick Coupling |
| Coupler/Nipple/Shell: | Coupler |
Part Number Tags
B20-4B
