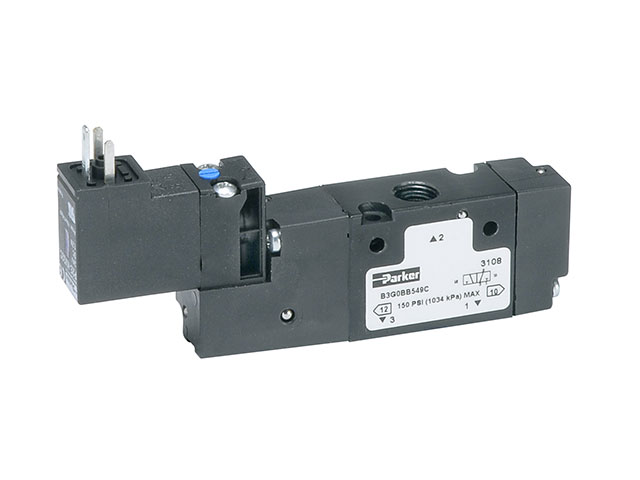

Click Image to Zoom
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW
B Series Single Solenoid 3-way 2-position Valve
B Series Single Solenoid 3-way 2-position Valve
| Part #: B5G1BB553C | Manufacturer: Parker - Pneumatic Division |
|
Price/UOM: $143.06
|
Availability: 16 |
| UOM: EACH |
B Series Single Solenoid 3-way 2-position Valve
Email this page to a friend
Product Attributes
| Port: | 1/4 NPT |
| CV Factor: | 1.4 |
| Operator Type Detail: | Single |
| Solenoid Voltage: | 120VAC |
| Offset Return Type: | Air Return |
| Pilot Supply: | Internal |
| Override Type: | Non-locking |
| UOM: | EACH |
| Series: | B |
| Pneumatic Valve Type: | Inline Valve |
| Port Inch/BSP: | NPT |
| Valve Passages: | 3-way |
| Valve Positions: | 2-position |
| Operator Type: | Solenoid |
| Solenoid Connection: | 15mm 3-Pin DIN 43650C |
| Supply Pressure Range: | 20 to 145 PSIG (1.4 to 10 bar) |
| Operating Temperature: | -15°C to 49°C (5°F to 120°F) |
| Parker Division: | Pneumatic |
| Parker Group: | Automation |
