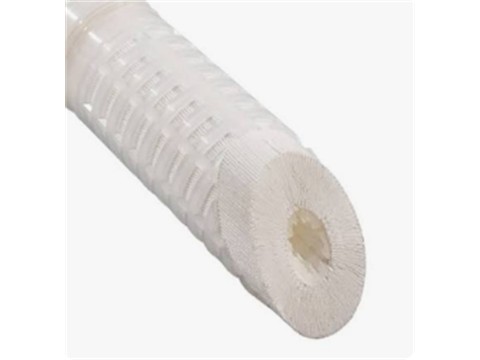

Clariflow-E-Select Pleated Membrane Filter Cartridge | Hydrophilic PES membrane for aqueous applications
Click Image to Zoom

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION. PLEASE DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE.

Clariflow-E-Select Pleated Membrane Filter Cartridge | Hydrophilic PES membrane for aqueous applications

Clariflow® -E-SELECT pleated membrane filter cartridges are optimized for use in microelectronics applications such as DI water and aqueous-based chemicals for removal of both organic and inorganic particulates.

Part #: CS-10310-002-1-E Manufacturer: Parker - Bioscience and Water Filtration Division
Price/UOM: Call To Place Order Availability: Out of Stock

Please Contact Us for Lead Time

UOM: EACH
CClariflow® -E-SELECT filter cartridges are optimized for use in microelectronics applications such as DI water and aqueous-based chemicals. The unique mirrored-anisotropic PES (Polyethersulfone) filter membrane has exceptionally high flow rates and on-stream lifetime while providing consistent removal of both organic and inorganic particulates. The innovative SELECT pleating provides increased performance over competitive filter cartridges. The filter membrane area is increased by over 50% while flows are 40% higher within the same footprint. The result is one of the longest lasting filter cartridges on the market.
Email this page to a friend
Product Attributes
Length (inch): 10
Micron Rating (µm): 0.2
End Cap Configuration: 222 O-ring/Flat cap
Seal Material: EPDM
Flow Rate: 5.2gpm/psid per 10 inch cartridge equivalent for 0.2um
Style: No Insert
Brand 10: Parker
Style 15: No Insert
Media 40: PES (Polyethersulfone)
Outside Diameter 50: 2.75 inch
Core Type 160: Polypropylene
Division 190: Bioscience and Water Filtration Division
End Cap Configuration 220: 222 O-Ring - Flat Cap
End Cap Material 230: Polypropylene
Filter Construction 250: Pleated Membrane
Function 300: Clarification - Prefiltration - Polishing
Hose Reinforcement Material & Structure 330: Polypropylene
Industry 350: Microelectronics
Seal Material 590: EPDM
Micron Rating ( um) 470: 0.2
Length (inch) 410: 10
Flow Rate 280: 5.2gpm - psid per 10 inch cartridge equivalent for 0.2um
Micron Rating (µm): 0.2
End Cap Configuration: 222 O-RING/FLAT CAP
Style: 1/2" Shortened on 222 Fitting
Length (inch): 10
Seal Material: FEP Encapsulated Viton
Part Number Tags
CS-10310-002-1-E
