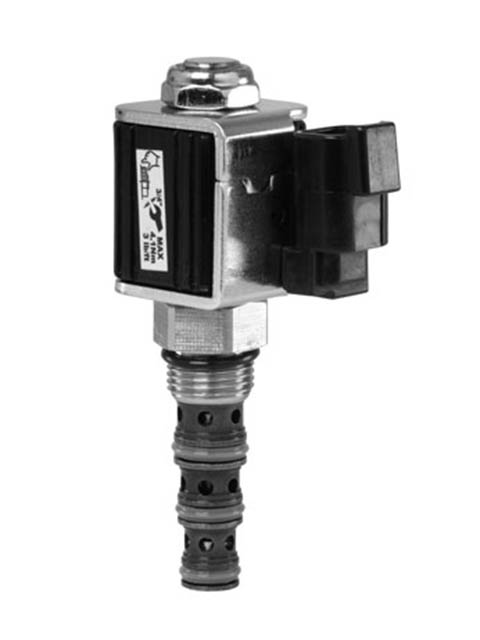

DSL084 Solenoid Valve
Spool Type - 4-Way Solenoid Valve for Size 08, 4-way Cavity (Coil Not Included)
| Part #: DSL084B | Manufacturer: Parker - Hydraulic Cartridge Systems Division |
|
Price/UOM: $68.06
|
Availability: 32 |
| UOM: EACH |
DSL084 Series Solenoid Valve - Spool Type - 4-Way (Coil Not Included)
Email this page to a friend
Product Attributes
| Rated Flow: | 11-15 LPM (3-4 GPM) |
| Leakage: | 160 cc/min. (10 in3/min.) at 250 Bar (3600 PSI) |
| Max Pressure: | 250 Bar (3600 PSI) |
| UOM: | EACH |
| Seals: | āDā-Ring |
| Screen: | None |
| Operating Temperature: | -45C to +93.3C (-50F to +200F) |
| Override Type: | None |
| Common Cavity: | Size 08, 4-way |
| Valve Body: | B08-4 |
| Valve Type Detail: | Spool Type - 4-Way |
| Series: | DSL084 |
| Valve Type: | Solenoid Valve |
| Port: | None - Cartridge Only |
| Valve Style: | 3-way or 4-way spool (see catalog for flow paths) |
| Common Cavity Type: | Size 08, 4-way |
| Parker Group: | Hydraulic |
| Parker Division: | Hydraulic Cartridge Systems |
