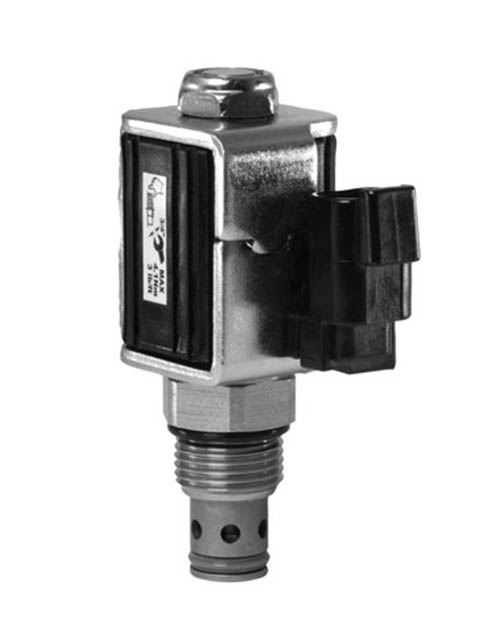

DSL102 Solenoid Valve
Spool Type - 2-Way Solenoid Valve for Size 10, 2-way Cavity (Coil Not Included)
| Part #: DSL102CT | Manufacturer: Parker - Hydraulic Cartridge Systems Division |
|
Price/UOM: $99.74
|
Availability: 7 |
| UOM: EACH |
DSL102 Series Solenoid Valve - Spool Type - 2-Way (Coil Not Included)
Email this page to a friend
Product Attributes
| Rated Flow: | 30 LPM (8.0 GPM) |
| Leakage: | 120 cc/min. (7.5 in3/min.) 150 SSU (32cSt) at 250 Bar (3600 PSI) |
| Max Pressure: | 250 Bar (3600 PSI) |
| UOM: | EACH |
| Seals: | āDā-Ring |
| Screen: | None |
| Operating Temperature: | -45C to +93.3C (-50F to +200F) |
| Override Type: | Push & Twist (N.C. & N.O.) |
| Common Cavity: | Size 10, 2-way |
| Valve Body: | B10-2 |
| Valve Type Detail: | Spool Type - 2-Way |
| Series: | DSL102 |
| Valve Type: | Solenoid Valve |
| Port: | None - Cartridge Only |
| Valve Style: | Normally Closed |
| Common Cavity Type: | Size 10, 2-way |
| Parker Group: | Hydraulic |
| Parker Division: | Hydraulic Cartridge Systems |
Part Number Tags
DSL102CT
