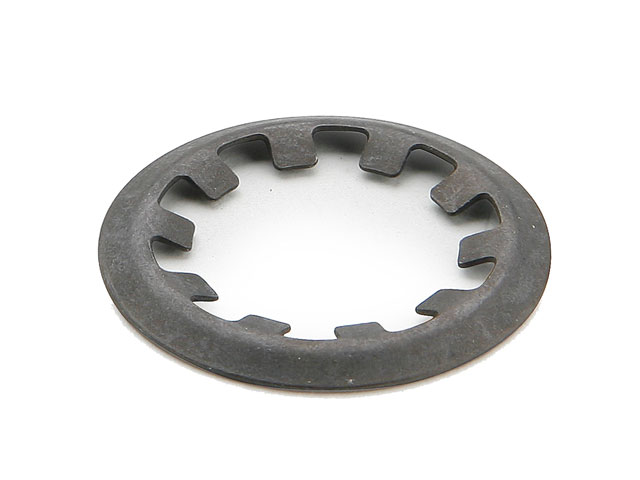

Prestomatic ERHD
Retainer - Push-to-Connect Transportation Fitting
| Part #: ERHD-100 | Manufacturer: Parker - Fluid System Connectors Division |
|
Price/UOM: $0.90
|
Availability: 42,649 |
| UOM: EACH |
Parker's Prestomatic Series Retainer is a robust, all brass push-to-connect fitting that meets SAE and D.O.T.
specifications. Designed for all D.O.T truck and trailer applications, Parker Prestomatic fittings reduce
assembly time versus compression style fittings by 90%.
Email this page to a friend
Product Attributes
| Outer Diameter 1: | 5/8 Inch |
| Material: | Carbon Spring Steel |
| UOM: | EACH |
| Configuration Type: | Auxiliary |
| Trade Name: | Prestomatic |
| Series: | Prestomatic |
| Pressure Range: | Up to 250 PSI |
| Configuration Sub-Type: | Retainer |
| Outer Diameter 1 Inch/mm: | Inch |
| Inch/Metric: | Inch |
| Parker Division: | Fluid Systems Connector (Brass Products) |
| Operating Temperature: | -40°F to +200°F |
| Application: | Transportation: Heavy Duty Truck, Trailer, Mobile |
| Specific Application: | Air Brakes, Air Tanks, Air Ride, Sliders, Tire Inflation, Primary & Secondary, Air Lines, Cab Controls |
| SAE Compliance: | SAE J2494 & SAE J2494-3 and D.O.T. FMVSS571.106 |
Part Number Tags
ERHD-100
